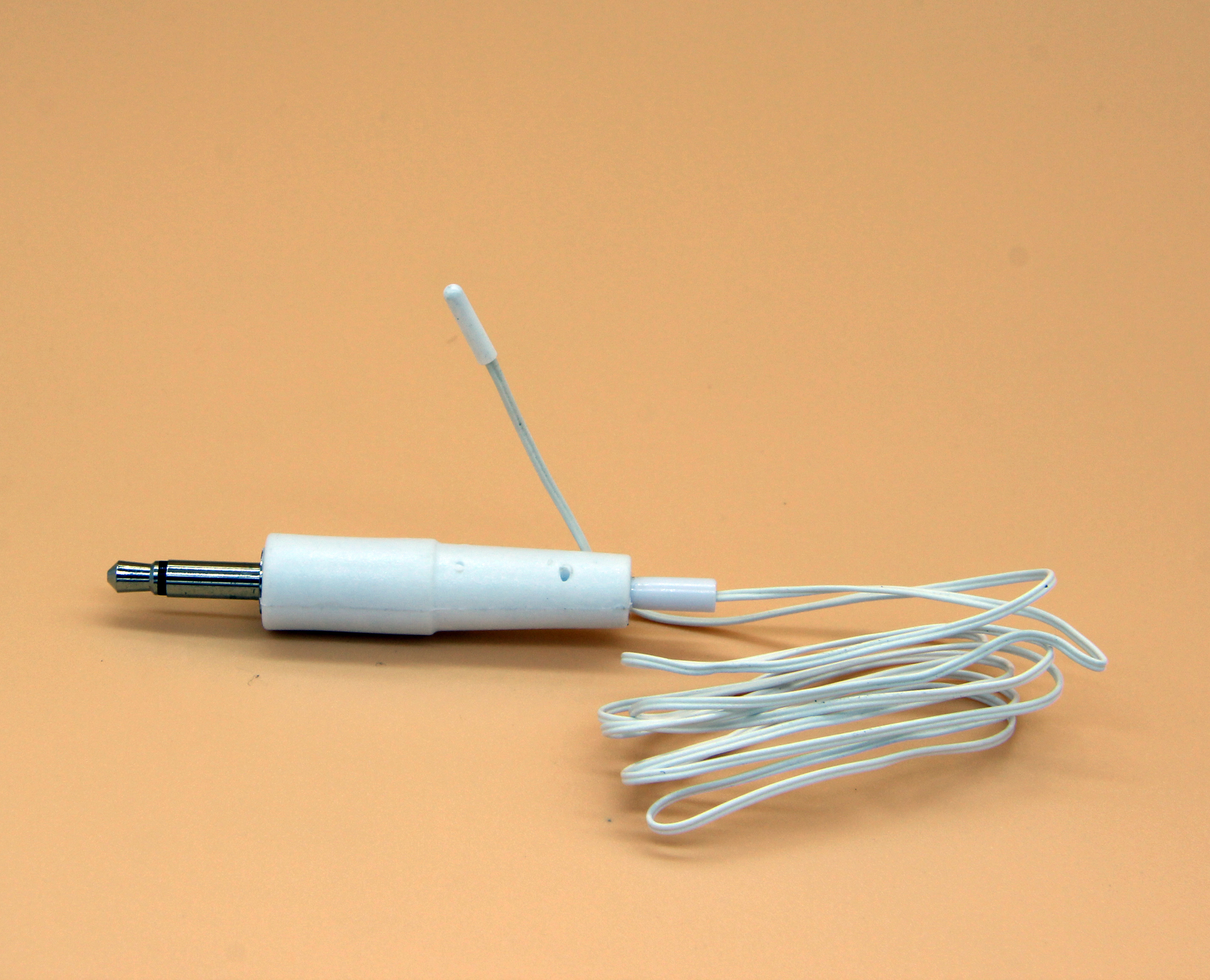

NTC热敏电阻 10K 3977
来源：本站 更新时间：2017-03-13 09:03:13 查看次数：
NTC热敏电阻(温度传感器)10K ±0.1% B值3977分度表
TEMPERATURE VS RESISTANCE TABLE
Resistance 10k Ohms at 25deg. C
B Value 3977K at 25/85 deg. C
|
Temp. (deg. C) |
R (k Ohms) |
Temp. (deg. C) |
R (kOhms) |
Temp. (deg. C) |
R (kOhms) |
Temp. (deg. C) |
R (kOhms) |
| -40.0 | 339.9381 | 8.0 | 21.9245 | 56.0 | 2.8762 | 104.0 | 0.6049 |
| -39.9 | 337.6630 | 8.1 | 21.8183 | 56.1 | 2.8656 | 104.1 | 0.6032 |
| -39.8 | 335.4048 | 8.2 | 21.7126 | 56.2 | 2.8551 | 104.2 | 0.6014 |
| -39.7 | 333.1634 | 8.3 | 21.6075 | 56.3 | 2.8446 | 104.3 | 0.5997 |
| -39.6 | 330.9386 | 8.4 | 21.5029 | 56.4 | 2.8342 | 104.4 | 0.5980 |
| -39.5 | 328.7303 | 8.5 | 21.3990 | 56.5 | 2.8238 | 104.5 | 0.5963 |
| -39.4 | 326.5383 | 8.6 | 21.2956 | 56.6 | 2.8134 | 104.6 | 0.5946 |
| -39.3 | 324.3950 | 8.7 | 21.1927 | 56.7 | 2.8031 | 104.7 | 0.5929 |
| -39.2 | 322.2029 | 8.8 | 21.0905 | 56.8 | 2.7929 | 104.8 | 0.5912 |
| -39.1 | 320.0591 | 8.9 | 20.9887 | 56.9 | 2.7827 | 104.9 | 0.5896 |
| -39.0 | 317.9312 | 9.0 | 20.8876 | 57.0 | 2.7725 | 105.0 | 0.5879 |
| -38.9 | 315.8191 | 9.1 | 20.7869 | 57.1 | 2.7624 | 105.1 | 0.5862 |
| -38.8 | 313.7225 | 9.2 | 20.6869 | 57.2 | 2.7523 | 105.2 | 0.5845 |
| -38.7 | 311.6414 | 9.3 | 20.5873 | 57.3 | 2.7422 | 105.3 | 0.5829 |
| -38.6 | 309.5755 | 9.4 | 20.4884 | 57.4 | 2.7322 | 105.4 | 0.5812 |
| -38.5 | 307.5249 | 9.5 | 20.3899 | 57.5 | 2.7223 | 105.5 | 0.5796 |
| -38.4 | 305.4894 | 9.6 | 20.2920 | 57.6 | 2.7123 | 105.6 | 0.5779 |
| -38.3 | 303.4688 | 9.7 | 20.1946 | 57.7 | 2.7025 | 105.7 | 0.5763 |
| -38.2 | 301.4630 | 9.8 | 20.0977 | 57.8 | 2.6926 | 105.8 | 0.5747 |
| -38.1 | 299.4720 | 9.9 | 20.0014 | 57.9 | 2.6828 | 105.9 | 0.5731 |
| -38.0 | 297.4956 | 10.0 | 19.9056 | 58.0 | 2.6731 | 106.0 | 0.5714 |
| -37.9 | 295.5336 | 10.1 | 19.8103 | 58.1 | 2.6634 | 106.1 | 0.5698 |
| -37.8 | 293.5860 | 10.2 | 19.7155 | 58.2 | 2.6537 | 106.2 | 0.5682 |
| -37.7 | 291.6527 | 10.3 | 19.6212 | 58.3 | 2.6441 | 106.3 | 0.5666 |
| -37.6 | 289.7335 | 10.4 | 19.5274 | 58.4 | 2.6345 | 106.4 | 0.5650 |
| -37.5 | 287.8283 | 10.5 | 19.4342 | 58.5 | 2.6249 | 106.5 | 0.5634 |
| -37.4 | 285.9371 | 10.6 | 19.3414 | 58.6 | 2.6154 | 106.6 | 0.5618 |
| -37.3 | 284.0596 | 10.7 | 19.2491 | 58.7 | 2.6059 | 106.7 | 0.5602 |
| -37.2 | 282.1958 | 10.8 | 19.1574 | 58.8 | 2.5965 | 106.8 | 0.5587 |
| -37.1 | 280.3456 | 10.9 | 19.0661 | 58.9 | 2.5871 | 106.9 | 0.5571 |
| -37.0 | 278.5089 | 11.0 | 18.9753 | 59.0 | 2.5778 | 107.0 | 0.5555 |
| -36.9 | 276.6855 | 11.1 | 18.8850 | 59.1 | 2.5684 | 107.1 | 0.5540 |
| -36.8 | 274.8754 | 11.2 | 18.7952 | 59.2 | 2.5592 | 107.2 | 0.5524 |
| -36.7 | 273.0785 | 11.3 | 18.7059 | 59.3 | 2.5499 | 107.3 | 0.5509 |
| -36.6 | 271.2945 | 11.4 | 18.6170 | 59.4 | 2.5407 | 107.4 | 0.5493 |
| -36.5 | 269.5236 | 11.5 | 18.5287 | 59.5 | 2.5316 | 107.5 | 0.5478 |
| -36.4 | 267.7655 | 11.6 | 18.4408 | 59.6 | 2.5224 | 107.6 | 0.5462 |
| -36.3 | 266.0201 | 11.7 | 18.3533 | 59.7 | 2.5133 | 107.7 | 0.5447 |
| -36.2 | 264.2873 | 11.8 | 18.2664 | 59.8 | 2.5043 | 107.8 | 0.5432 |
| -36.1 | 262.5671 | 11.9 | 18.1799 | 59.9 | 2.4953 | 107.9 | 0.5417 |
| -36.0 | 260.8594 | 12.0 | 18.0938 | 60.0 | 2.4863 | 108.0 | 0.5401 |
| -35.9 | 259.1639 | 12.1 | 18.0083 | 60.1 | 2.4774 | 108.1 | 0.5386 |
| -35.8 | 257.4808 | 12.2 | 17.9231 | 60.2 | 2.4685 | 108.2 | 0.5371 |
| -35.7 | 255.8097 | 12.3 | 17.8385 | 60.3 | 2.4596 | 108.3 | 0.5356 |
| -35.6 | 254.1507 | 12.4 | 17.7542 | 60.4 | 2.4508 | 108.4 | 0.5341 |
| -35.5 | 252.5037 | 12.5 | 17.6705 | 60.5 | 2.4420 | 108.5 | 0.5326 |
| -35.4 | 250.8685 | 12.6 | 17.5872 | 60.6 | 2.4332 | 108.6 | 0.5312 |
| -35.3 | 249.2451 | 12.7 | 17.5043 | 60.7 | 2.4200 | 108.7 | 0.5297 |
| -35.2 | 247.6333 | 12.8 | 17.4218 | 60.8 | 2.4100 | 108.8 | 0.5282 |
| -35.1 | 246.0332 | 12.9 | 17.3398 | 60.9 | 2.4000 | 108.9 | 0.5267 |
| -35.0 | 244.4445 | 13.0 | 17.2583 | 61.0 | 2.3935 | 109.0 | 0.5253 |
| -34.9 | 242.8672 | 13.1 | 17.1772 | 61.1 | 2.3900 | 109.1 | 0.5238 |
| -34.8 | 241.3012 | 13.2 | 17.0965 | 61.2 | 2.3815 | 109.2 | 0.5223 |
| -34.7 | 239.7465 | 13.3 | 17.0162 | 61.3 | 2.3760 | 109.3 | 0.5209 |
| -34.6 | 238.2029 | 13.4 | 16.9363 | 61.4 | 2.3645 | 109.4 | 0.5194 |
| -34.5 | 236.6703 | 13.5 | 16.8569 | 61.5 | 2.3550 | 109.5 | 0.5180 |
| -34.4 | 235.1487 | 13.6 | 16.7779 | 61.6 | 2.3435 | 109.6 | 0.5166 |
| -34.3 | 233.6380 | 13.7 | 16.6993 | 61.7 | 2.3393 | 109.7 | 0.5151 |
| -34.2 | 232.1380 | 13.8 | 16.6211 | 61.8 | 2.3310 | 109.8 | 0.5137 |
| -34.1 | 230.6488 | 13.9 | 16.5434 | 61.9 | 2.3227 | 109.9 | 0.5123 |
| -34.0 | 229.1702 | 14.0 | 16.4660 | 62.0 | 2.3144 | 110.0 | 0.5109 |
| -33.9 | 227.7021 | 14.1 | 16.3891 | 62.1 | 2.3062 | 110.1 | 0.5095 |
| -33.8 | 226.2445 | 14.2 | 16.3126 | 62.2 | 2.2980 | 110.2 | 0.5080 |
| -33.7 | 224.7972 | 14.3 | 16.2364 | 62.3 | 2.2898 | 110.3 | 0.5066 |
| -33.6 | 223.3602 | 14.4 | 16.1607 | 62.4 | 2.2817 | 110.4 | 0.5052 |
| -33.5 | 221.9335 | 14.5 | 16.0854 | 62.5 | 2.2736 | 110.5 | 0.5038 |
| -33.4 | 220.5169 | 14.6 | 16.0105 | 62.6 | 2.2655 | 110.6 | 0.5025 |
| -33.3 | 219.1103 | 14.7 | 15.9359 | 62.7 | 2.2575 | 110.7 | 0.5011 |
| -33.2 | 217.7137 | 14.8 | 15.8618 | 62.8 | 2.2495 | 110.8 | 0.4997 |
| -33.1 | 216.3270 | 14.9 | 15.7880 | 62.9 | 2.2415 | 110.9 | 0.4983 |
| -33.0 | 214.9501 | 15.0 | 15.7146 | 63.0 | 2.2336 | 111.0 | 0.4969 |
| -32.9 | 213.5830 | 15.1 | 15.6416 | 63.1 | 2.2257 | 111.1 | 0.4956 |
| -32.8 | 212.2254 | 15.2 | 15.5690 | 63.2 | 2.2178 | 111.2 | 0.4942 |
| -32.7 | 210.8775 | 15.3 | 15.4968 | 63.3 | 2.2100 | 111.3 | 0.4928 |
| -32.6 | 209.5392 | 15.4 | 15.4250 | 63.4 | 2.2022 | 111.4 | 0.4915 |
| -32.5 | 208.2103 | 15.5 | 15.3535 | 63.5 | 2.1944 | 111.5 | 0.4901 |
| -32.4 | 206.8907 | 15.6 | 15.2824 | 63.6 | 2.1867 | 111.6 | 0.4888 |
| -32.3 | 205.5804 | 15.7 | 15.2117 | 63.7 | 2.1790 | 111.7 | 0.4874 |
| -32.2 | 204.2794 | 15.8 | 15.1413 | 63.8 | 2.1713 | 111.8 | 0.4861 |
| -32.1 | 202.9875 | 15.9 | 15.0713 | 63.9 | 2.1636 | 111.9 | 0.4848 |
| -32.0 | 201.7047 | 16.0 | 15.0017 | 64.0 | 2.1560 | 112.0 | 0.4834 |
| -31.9 | 200.4310 | 16.1 | 14.9325 | 64.1 | 2.1484 | 112.1 | 0.4821 |
| -31.8 | 199.1661 | 16.2 | 14.8636 | 64.2 | 2.1409 | 112.2 | 0.4808 |
| -31.7 | 197.9102 | 16.3 | 14.7950 | 64.3 | 2.1334 | 112.3 | 0.4795 |
| -31.6 | 196.6631 | 16.4 | 14.7269 | 64.4 | 2.1259 | 112.4 | 0.4782 |
| -31.5 | 195.4247 | 16.5 | 14.6590 | 64.5 | 2.1184 | 112.5 | 0.4769 |
| -31.4 | 194.1949 | 16.6 | 14.5916 | 64.6 | 2.1110 | 112.6 | 0.4756 |
| -31.3 | 192.9738 | 16.7 | 14.5244 | 64.7 | 2.1036 | 112.7 | 0.4743 |
| -31.2 | 191.7613 | 16.8 | 14.4577 | 64.8 | 2.0962 | 112.8 | 0.4730 |
| -31.1 | 190.5572 | 16.9 | 14.3912 | 64.9 | 2.0889 | 112.9 | 0.4717 |
| -31.0 | 189.3615 | 17.0 | 14.3252 | 65.0 | 2.0816 | 113.0 | 0.4704 |
| -30.9 | 188.1741 | 17.1 | 14.2594 | 65.1 | 2.0743 | 113.1 | 0.4691 |
| -30.8 | 186.9951 | 17.2 | 14.1940 | 65.2 | 2.0670 | 113.2 | 0.4678 |
| -30.7 | 185.8243 | 17.3 | 14.1290 | 65.3 | 2.0598 | 113.3 | 0.4666 |
| -30.6 | 184.6616 | 17.4 | 14.0642 | 65.4 | 2.0526 | 113.4 | 0.4653 |
| -30.5 | 183.5070 | 17.5 | 13.9999 | 65.5 | 2.0454 | 113.5 | 0.4640 |
| -30.4 | 182.3604 | 17.6 | 13.9358 | 65.6 | 2.0383 | 113.6 | 0.4628 |
| -30.3 | 181.2219 | 17.7 | 13.8721 | 65.7 | 2.0312 | 113.7 | 0.4615 |
| -30.2 | 180.0912 | 17.8 | 13.8087 | 65.8 | 2.0241 | 113.8 | 0.4602 |
| -30.1 | 178.9684 | 17.9 | 13.7456 | 65.9 | 2.0170 | 113.9 | 0.4590 |
| -30.0 | 177.8533 | 18.0 | 13.6829 | 66.0 | 2.0100 | 114.0 | 0.4578 |
| -29.9 | 176.7461 | 18.1 | 13.6205 | 66.1 | 2.0030 | 114.1 | 0.4565 |
| -29.8 | 175.6464 | 18.2 | 13.5584 | 66.2 | 1.9961 | 114.2 | 0.4553 |
| -29.7 | 174.5544 | 18.3 | 13.4966 | 66.3 | 1.9891 | 114.3 | 0.4540 |
| -29.6 | 173.4700 | 18.4 | 13.4351 | 66.4 | 1.9822 | 114.4 | 0.4528 |
| -29.5 | 172.3930 | 18.5 | 13.3740 | 66.5 | 1.9753 | 114.5 | 0.4516 |
| -29.4 | 171.3235 | 18.6 | 13.3132 | 66.6 | 1.9685 | 114.6 | 0.4504 |
| -29.3 | 170.2614 | 18.7 | 13.2527 | 66.7 | 1.9616 | 114.7 | 0.4491 |
| -29.2 | 169.2066 | 18.8 | 13.1925 | 66.8 | 1.9548 | 114.8 | 0.4479 |
| -29.1 | 168.1591 | 18.9 | 13.1326 | 66.9 | 1.9481 | 114.9 | 0.4467 |
| -29.0 | 167.1188 | 19.0 | 13.0730 | 67.0 | 1.9413 | 115.0 | 0.4455 |
| -28.9 | 166.0856 | 19.1 | 13.0137 | 67.1 | 1.9346 | 115.1 | 0.4443 |
| -28.8 | 165.0596 | 19.2 | 12.9547 | 67.2 | 1.9279 | 115.2 | 0.4431 |
| -28.7 | 164.0406 | 19.3 | 12.8961 | 67.3 | 1.9212 | 115.3 | 0.4419 |
| -28.6 | 163.0287 | 19.4 | 12.8377 | 67.4 | 1.9146 | 115.4 | 0.4407 |
| -28.5 | 162.0236 | 19.5 | 12.7796 | 67.5 | 1.9080 | 115.5 | 0.4395 |
| -28.4 | 161.0255 | 19.6 | 12.7218 | 67.6 | 1.9014 | 115.6 | 0.4384 |
| -28.3 | 160.0342 | 19.7 | 12.6644 | 67.7 | 1.8948 | 115.7 | 0.4372 |
| -28.2 | 159.0498 | 19.8 | 12.6072 | 67.8 | 1.8883 | 115.8 | 0.4360 |
| -28.1 | 158.0720 | 19.9 | 12.5503 | 67.9 | 1.8818 | 115.9 | 0.4348 |
| -28.0 | 157.1010 | 20.0 | 12.4937 | 68.0 | 1.8753 | 116.0 | 0.4337 |
| -27.9 | 156.1366 | 20.1 | 12.4374 | 68.1 | 1.8689 | 116.1 | 0.4325 |
| -27.8 | 155.1788 | 20.2 | 12.3813 | 68.2 | 1.8624 | 116.2 | 0.4313 |
| -27.7 | 154.2275 | 20.3 | 12.3256 | 68.3 | 1.8560 | 116.3 | 0.4302 |
| -27.6 | 153.2827 | 20.4 | 12.2701 | 68.4 | 1.8496 | 116.4 | 0.4290 |
| -27.5 | 152.3444 | 20.5 | 12.2150 | 68.5 | 1.8433 | 116.5 | 0.4279 |
| -27.4 | 151.4125 | 20.6 | 12.1601 | 68.6 | 1.8369 | 116.6 | 0.4267 |
| -27.3 | 150.4869 | 20.7 | 12.1054 | 68.7 | 1.8306 | 116.7 | 0.4256 |
| -27.2 | 149.5676 | 20.8 | 12.0511 | 68.8 | 1.8244 | 116.8 | 0.4245 |
| -27.1 | 148.6546 | 20.9 | 11.9970 | 68.9 | 1.8181 | 116.9 | 0.4233 |
| -27.0 | 147.7478 | 21.0 | 11.9433 | 69.0 | 1.8119 | 117.0 | 0.4222 |
| -26.9 | 146.8471 | 21.1 | 11.8897 | 69.1 | 1.8057 | 117.1 | 0.4211 |
| -26.8 | 145.9526 | 21.2 | 11.8365 | 69.2 | 1.7995 | 117.2 | 0.4199 |
| -26.7 | 145.0641 | 21.3 | 11.7835 | 69.3 | 1.7933 | 117.3 | 0.4188 |
| -26.6 | 144.1817 | 21.4 | 11.7308 | 69.4 | 1.7872 | 117.4 | 0.4177 |
| -26.5 | 143.3052 | 21.5 | 11.6784 | 69.5 | 1.7811 | 117.5 | 0.4166 |
| -26.4 | 142.4347 | 21.6 | 11.6262 | 69.6 | 1.7750 | 117.6 | 0.4155 |
| -26.3 | 141.5701 | 21.7 | 11.5743 | 69.7 | 1.7690 | 117.7 | 0.4144 |
| -26.2 | 140.7113 | 21.8 | 11.5226 | 69.8 | 1.7629 | 117.8 | 0.4133 |
| -26.1 | 139.8583 | 21.9 | 11.4713 | 69.9 | 1.7569 | 117.9 | 0.4122 |
| -26.0 | 139.0111 | 22.0 | 11.4201 | 70.0 | 1.7509 | 118.0 | 0.4111 |
| -25.9 | 138.1696 | 22.1 | 11.3693 | 70.1 | 1.7450 | 118.1 | 0.4100 |
| -25.8 | 137.3338 | 22.2 | 11.3186 | 70.2 | 1.7390 | 118.2 | 0.4089 |
| -25.7 | 136.5036 | 22.3 | 11.2683 | 70.3 | 1.7331 | 118.3 | 0.4078 |
| -25.6 | 135.6790 | 22.4 | 11.2182 | 70.4 | 1.7272 | 118.4 | 0.4067 |
| -25.5 | 134.8599 | 22.5 | 11.1683 | 70.5 | 1.7213 | 118.5 | 0.4056 |
| -25.4 | 134.0464 | 22.6 | 11.1187 | 70.6 | 1.7155 | 118.6 | 0.4046 |
| -25.3 | 133.2383 | 22.7 | 11.0694 | 70.7 | 1.7097 | 118.7 | 0.4035 |
| -25.2 | 132.4357 | 22.8 | 11.0203 | 70.8 | 1.7038 | 118.8 | 0.4024 |
| -25.1 | 131.6384 | 22.9 | 10.9714 | 70.9 | 1.6981 | 118.9 | 0.4014 |
| -25.0 | 130.8465 | 23.0 | 10.9228 | 71.0 | 1.6923 | 119.0 | 0.4003 |
| -24.9 | 130.0599 | 23.1 | 10.8744 | 71.1 | 1.6866 | 119.1 | 0.3992 |
| -24.8 | 129.2786 | 23.2 | 10.8263 | 71.2 | 1.6809 | 119.2 | 0.3982 |
| -24.7 | 128.5025 | 23.3 | 10.7784 | 71.3 | 1.6752 | 119.3 | 0.3971 |
| -24.6 | 127.7316 | 23.4 | 10.7308 | 71.4 | 1.6695 | 119.4 | 0.3961 |
| -24.5 | 126.9659 | 23.5 | 10.6834 | 71.5 | 1.6639 | 119.5 | 0.3950 |
| -24.4 | 126.2052 | 23.6 | 10.6362 | 71.6 | 1.6582 | 119.6 | 0.3940 |
| -24.3 | 125.4497 | 23.7 | 10.5893 | 71.7 | 1.6526 | 119.7 | 0.3930 |
| -24.2 | 124.6992 | 23.8 | 10.5426 | 71.8 | 1.6471 | 119.8 | 0.3919 |
| -24.1 | 123.9537 | 23.9 | 10.4961 | 71.9 | 1.6415 | 119.9 | 0.3909 |
| -24.0 | 123.2132 | 24.0 | 10.4499 | 72.0 | 1.6360 | 120.0 | 0.3899 |
| -23.9 | 122.4776 | 24.1 | 10.4039 | 72.1 | 1.6305 | 120.1 | 0.3888 |
| -23.8 | 121.7469 | 24.2 | 10.3581 | 72.2 | 1.6250 | 120.2 | 0.3878 |
| -23.7 | 121.0210 | 24.3 | 10.3126 | 72.3 | 1.6195 | 120.3 | 0.3868 |
| -23.6 | 120.3000 | 24.4 | 10.2672 | 72.4 | 1.6140 | 120.4 | 0.3858 |
| -23.5 | 119.5838 | 24.5 | 10.2221 | 72.5 | 1.6086 | 120.5 | 0.3848 |
| -23.4 | 118.8723 | 24.6 | 10.1773 | 72.6 | 1.6032 | 120.6 | 0.3838 |
| -23.3 | 118.1656 | 24.7 | 10.1326 | 72.7 | 1.5978 | 120.7 | 0.3827 |
| -23.2 | 117.4635 | 24.8 | 10.0882 | 72.8 | 1.5924 | 120.8 | 0.3817 |
| -23.1 | 116.7661 | 24.9 | 10.0440 | 72.9 | 1.5871 | 120.9 | 0.3807 |
| -23.0 | 116.0733 | 25.0 | 10.0000 | 73.0 | 1.5818 | 121.0 | 0.3797 |
| -22.9 | 115.3851 | 25.1 | 9.9563 | 73.1 | 1.5765 | 121.1 | 0.3788 |
| -22.8 | 114.7014 | 25.2 | 9.9127 | 73.2 | 1.5712 | 121.2 | 0.3778 |
| -22.7 | 114.0223 | 25.3 | 9.8694 | 73.3 | 1.5659 | 121.3 | 0.3768 |
| -22.6 | 113.3476 | 25.4 | 9.8263 | 73.4 | 1.5607 | 121.4 | 0.3758 |
| -22.5 | 112.6774 | 25.5 | 9.7834 | 73.5 | 1.5555 | 121.5 | 0.3748 |
| -22.4 | 112.0116 | 25.6 | 9.7407 | 73.6 | 1.5503 | 121.6 | 0.3738 |
| -22.3 | 111.3502 | 25.7 | 9.6982 | 73.7 | 1.5451 | 121.7 | 0.3729 |
| -22.2 | 110.6932 | 25.8 | 9.6559 | 73.8 | 1.5399 | 121.8 | 0.3719 |
| -22.1 | 110.0405 | 25.9 | 9.6139 | 73.9 | 1.5348 | 121.9 | 0.3709 |
| -22.0 | 109.3921 | 26.0 | 9.5720 | 74.0 | 1.5297 | 122.0 | 0.3699 |
| -21.9 | 108.7479 | 26.1 | 9.5304 | 74.1 | 1.5246 | 122.1 | 0.3690 |
| -21.8 | 108.1080 | 26.2 | 9.4889 | 74.2 | 1.5195 | 122.2 | 0.3680 |
| -21.7 | 107.4723 | 26.3 | 9.4477 | 74.3 | 1.5144 | 122.3 | 0.3671 |
| -21.6 | 106.8407 | 26.4 | 9.4067 | 74.4 | 1.5094 | 122.4 | 0.3661 |
| -21.5 | 106.2133 | 26.5 | 9.3658 | 74.5 | 1.5043 | 122.5 | 0.3652 |
| -21.4 | 105.5900 | 26.6 | 9.3252 | 74.6 | 1.4993 | 122.6 | 0.3642 |
| -21.3 | 104.9708 | 26.7 | 9.2848 | 74.7 | 1.4944 | 122.7 | 0.3633 |
| -21.2 | 104.3556 | 26.8 | 9.2445 | 74.8 | 1.4894 | 122.8 | 0.3623 |
| -21.1 | 103.7445 | 26.9 | 9.2045 | 74.9 | 1.4844 | 122.9 | 0.3614 |
| -21.0 | 103.1373 | 27.0 | 9.1647 | 75.0 | 1.4795 | 123.0 | 0.3604 |
| -20.9 | 102.5341 | 27.1 | 9.1250 | 75.1 | 1.4746 | 123.1 | 0.3595 |
| -20.8 | 101.9349 | 27.2 | 9.0856 | 75.2 | 1.4697 | 123.2 | 0.3586 |
| -20.7 | 101.3395 | 27.3 | 9.0463 | 75.3 | 1.4649 | 123.3 | 0.3576 |
| -20.6 | 100.7480 | 27.4 | 9.0073 | 75.4 | 1.4600 | 123.4 | 0.3567 |
| -20.5 | 100.1604 | 27.5 | 8.9684 | 75.5 | 1.4552 | 123.5 | 0.3558 |
| -20.4 | 99.5767 | 27.6 | 8.9297 | 75.6 | 1.4504 | 123.6 | 0.3549 |
| -20.3 | 98.9967 | 27.7 | 8.8912 | 75.7 | 1.4456 | 123.7 | 0.3540 |
| -20.2 | 98.4205 | 27.8 | 8.8529 | 75.8 | 1.4408 | 123.8 | 0.3531 |
| -20.1 | 97.8480 | 27.9 | 8.8148 | 75.9 | 1.4360 | 123.9 | 0.3521 |
| -20.0 | 97.2792 | 28.0 | 8.7769 | 76.0 | 1.4313 | 124.0 | 0.3512 |
| -19.9 | 96.7142 | 28.1 | 8.7391 | 76.1 | 1.4266 | 124.1 | 0.3503 |
| -19.8 | 96.1528 | 28.2 | 8.7016 | 76.2 | 1.4218 | 124.2 | 0.3494 |
| -19.7 | 95.5950 | 28.3 | 8.6642 | 76.3 | 1.4172 | 124.3 | 0.3485 |
| -19.6 | 95.0408 | 28.4 | 8.6270 | 76.4 | 1.4125 | 124.4 | 0.3476 |
| -19.5 | 94.4903 | 28.5 | 8.5900 | 76.5 | 1.4078 | 124.5 | 0.3467 |
| -19.4 | 93.9433 | 28.6 | 8.5531 | 76.6 | 1.4032 | 124.6 | 0.3458 |
| -19.3 | 93.3998 | 28.7 | 8.5165 | 76.7 | 1.3986 | 124.7 | 0.3450 |
| -19.2 | 92.8599 | 28.8 | 8.4800 | 76.8 | 1.3940 | 124.8 | 0.3441 |
| -19.1 | 92.3234 | 28.9 | 8.4437 | 76.9 | 1.3894 | 124.9 | 0.3432 |
| -19.0 | 91.7904 | 29.0 | 8.4076 | 77.0 | 1.3848 | 125.0 | 0.3423 |
| -18.9 | 91.2608 | 29.1 | 8.3717 | 77.1 | 1.3803 | 125.1 | 0.3414 |
| -18.8 | 90.7346 | 29.2 | 8.3359 | 77.2 | 1.3758 | 125.2 | 0.3405 |
| -18.7 | 90.2119 | 29.3 | 8.3003 | 77.3 | 1.3713 | 125.3 | 0.3397 |
| -18.6 | 89.6924 | 29.4 | 8.2649 | 77.4 | 1.3668 | 125.4 | 0.3388 |
| -18.5 | 89.1764 | 29.5 | 8.2296 | 77.5 | 1.3623 | 125.5 | 0.3379 |
| -18.4 | 88.6636 | 29.6 | 8.1945 | 77.6 | 1.3578 | 125.6 | 0.3371 |
| -18.3 | 88.1541 | 29.7 | 8.1596 | 77.7 | 1.3534 | 125.7 | 0.3362 |
| -18.2 | 87.6479 | 29.8 | 8.1249 | 77.8 | 1.3490 | 125.8 | 0.3353 |
| -18.1 | 87.1450 | 29.9 | 8.0903 | 77.9 | 1.3445 | 125.9 | 0.3345 |
| -18.0 | 86.6453 | 30.0 | 8.0559 | 78.0 | 1.3402 | 126.0 | 0.3336 |
| -17.9 | 86.1488 | 30.1 | 8.0216 | 78.1 | 1.3358 | 126.1 | 0.3328 |
| -17.8 | 85.6554 | 30.2 | 7.9875 | 78.2 | 1.3314 | 126.2 | 0.3319 |
| -17.7 | 85.1652 | 30.3 | 7.9536 | 78.3 | 1.3271 | 126.3 | 0.3311 |
| -17.6 | 84.6782 | 30.4 | 7.9199 | 78.4 | 1.3227 | 126.4 | 0.3302 |
| -17.5 | 84.1942 | 30.5 | 7.8863 | 78.5 | 1.3184 | 126.5 | 0.3294 |
| -17.4 | 83.7134 | 30.6 | 7.8529 | 78.6 | 1.3141 | 126.6 | 0.3286 |
| -17.3 | 83.2356 | 30.7 | 7.8196 | 78.7 | 1.3099 | 126.7 | 0.3277 |
| -17.2 | 82.7608 | 30.8 | 7.7865 | 78.8 | 1.3056 | 126.8 | 0.3269 |
| -17.1 | 82.2891 | 30.9 | 7.7536 | 78.9 | 1.3014 | 126.9 | 0.3261 |
| -17.0 | 81.8204 | 31.0 | 7.7208 | 79.0 | 1.2971 | 127.0 | 0.3252 |
| -16.9 | 81.3547 | 31.1 | 7.6881 | 79.1 | 1.2929 | 127.1 | 0.3244 |
| -16.8 | 80.8919 | 31.2 | 7.6557 | 79.2 | 1.2887 | 127.2 | 0.3236 |
| -16.7 | 80.4321 | 31.3 | 7.6233 | 79.3 | 1.2845 | 127.3 | 0.3228 |
| -16.6 | 79.9752 | 31.4 | 7.5912 | 79.4 | 1.2804 | 127.4 | 0.3220 |
| -16.5 | 79.5212 | 31.5 | 7.5592 | 79.5 | 1.2762 | 127.5 | 0.3211 |
| -16.4 | 79.0701 | 31.6 | 7.5273 | 79.6 | 1.2721 | 127.6 | 0.3203 |
| -16.3 | 78.6218 | 31.7 | 7.4956 | 79.7 | 1.2680 | 127.7 | 0.3195 |
| -16.2 | 78.1764 | 31.8 | 7.4641 | 79.8 | 1.2639 | 127.8 | 0.3187 |
| -16.1 | 77.7338 | 31.9 | 7.4327 | 79.9 | 1.2598 | 127.9 | 0.3179 |
| -16.0 | 77.2940 | 32.0 | 7.4014 | 80.0 | 1.2557 | 128.0 | 0.3171 |
| -15.9 | 76.8569 | 32.1 | 7.3703 | 80.1 | 1.2516 | 128.1 | 0.3163 |
| -15.8 | 76.4227 | 32.2 | 7.3394 | 80.2 | 1.2476 | 128.2 | 0.3155 |
| -15.7 | 75.9911 | 32.3 | 7.3086 | 80.3 | 1.2436 | 128.3 | 0.3147 |
| -15.6 | 75.5624 | 32.4 | 7.2779 | 80.4 | 1.2396 | 128.4 | 0.3139 |
| -15.5 | 75.1363 | 32.5 | 7.2474 | 80.5 | 1.2356 | 128.5 | 0.3131 |
| -15.4 | 74.7129 | 32.6 | 7.2170 | 80.6 | 1.2316 | 128.6 | 0.3123 |
| -15.3 | 74.2921 | 32.7 | 7.1868 | 80.7 | 1.2276 | 128.7 | 0.3115 |
| -15.2 | 73.8740 | 32.8 | 7.1567 | 80.8 | 1.2237 | 128.8 | 0.3108 |
| -15.1 | 73.4586 | 32.9 | 7.1268 | 80.9 | 1.2197 | 128.9 | 0.3100 |
| -15.0 | 73.0457 | 33.0 | 7.0970 | 81.0 | 1.2158 | 129.0 | 0.3092 |
| -14.9 | 72.6355 | 33.1 | 7.0673 | 81.1 | 1.2119 | 129.1 | 0.3084 |
| -14.8 | 72.2278 | 33.2 | 7.0378 | 81.2 | 1.2080 | 129.2 | 0.3076 |
| -14.7 | 71.8227 | 33.3 | 7.0085 | 81.3 | 1.2041 | 129.3 | 0.3069 |
| -14.6 | 71.4201 | 33.4 | 6.9792 | 81.4 | 1.2003 | 129.4 | 0.3061 |
| -14.5 | 71.0201 | 33.5 | 6.9501 | 81.5 | 1.1964 | 129.5 | 0.3053 |
| -14.4 | 70.6225 | 33.6 | 6.9212 | 81.6 | 1.1926 | 129.6 | 0.3046 |
| -14.3 | 70.2275 | 33.7 | 6.8924 | 81.7 | 1.1888 | 129.7 | 0.3038 |
| -14.2 | 69.8349 | 33.8 | 6.8637 | 81.8 | 1.1849 | 129.8 | 0.3030 |
| -14.1 | 69.4447 | 33.9 | 6.8351 | 81.9 | 1.1812 | 129.9 | 0.3023 |
| -14.0 | 69.0570 | 34.0 | 6.8067 | 82.0 | 1.1774 | 130.0 | 0.3015 |
| -13.9 | 68.6718 | 34.1 | 6.7785 | 82.1 | 1.1736 | 130.1 | 0.3008 |
| -13.8 | 68.2889 | 34.2 | 6.7503 | 82.2 | 1.1699 | 130.2 | 0.3000 |
| -13.7 | 67.9084 | 34.3 | 6.7223 | 82.3 | 1.1661 | 130.3 | 0.2993 |
| -13.6 | 67.5303 | 34.4 | 6.6944 | 82.4 | 1.1624 | 130.4 | 0.2985 |
| -13.5 | 67.1545 | 34.5 | 6.6667 | 82.5 | 1.1587 | 130.5 | 0.2978 |
| -13.4 | 66.7811 | 34.6 | 6.6391 | 82.6 | 1.1550 | 130.6 | 0.2970 |
| -13.3 | 66.4100 | 34.7 | 6.6116 | 82.7 | 1.1513 | 130.7 | 0.2963 |
| -13.2 | 66.0412 | 34.8 | 6.5842 | 82.8 | 1.1476 | 130.8 | 0.2955 |
| -13.1 | 65.6747 | 34.9 | 6.5570 | 82.9 | 1.1440 | 130.9 | 0.2948 |
| -13.0 | 65.3105 | 35.0 | 6.5299 | 83.0 | 1.1403 | 131.0 | 0.2941 |
| -12.9 | 64.9485 | 35.1 | 6.5029 | 83.1 | 1.1367 | 131.1 | 0.2933 |
| -12.8 | 64.5888 | 35.2 | 6.4761 | 83.2 | 1.1331 | 131.2 | 0.2926 |
| -12.7 | 64.2313 | 35.3 | 6.4494 | 83.3 | 1.1295 | 131.3 | 0.2919 |
| -12.6 | 63.8760 | 35.4 | 6.4228 | 83.4 | 1.1259 | 131.4 | 0.2912 |
| -12.5 | 63.5230 | 35.5 | 6.3963 | 83.5 | 1.1223 | 131.5 | 0.2904 |
| -12.4 | 63.1721 | 35.6 | 6.3700 | 83.6 | 1.1188 | 131.6 | 0.2897 |
| -12.3 | 62.8233 | 35.7 | 6.3438 | 83.7 | 1.1152 | 131.7 | 0.2890 |
| -12.2 | 62.4768 | 35.8 | 6.3177 | 83.8 | 1.1117 | 131.8 | 0.2883 |
| -12.1 | 62.1323 | 35.9 | 6.2917 | 83.9 | 1.1082 | 131.9 | 0.2876 |
| -12.0 | 61.7900 | 36.0 | 6.2658 | 84.0 | 1.1047 | 132.0 | 0.2869 |
| -11.9 | 61.4498 | 36.1 | 6.2401 | 84.1 | 1.1012 | 132.1 | 0.2861 |
| -11.8 | 61.1117 | 36.2 | 6.2145 | 84.2 | 1.0977 | 132.2 | 0.2854 |
| -11.7 | 60.7757 | 36.3 | 6.1890 | 84.3 | 1.0942 | 132.3 | 0.2847 |
| -11.6 | 60.4417 | 36.4 | 6.1636 | 84.4 | 1.0908 | 132.4 | 0.2840 |
| -11.5 | 60.1099 | 36.5 | 6.1384 | 84.5 | 1.0873 | 132.5 | 0.2833 |
| -11.4 | 59.7800 | 36.6 | 6.1132 | 84.6 | 1.0839 | 132.6 | 0.2826 |
| -11.3 | 59.4522 | 36.7 | 6.0882 | 84.7 | 1.0805 | 132.7 | 0.2819 |
| -11.2 | 59.1263 | 36.8 | 6.0633 | 84.8 | 1.0771 | 132.8 | 0.2812 |
| -11.1 | 58.8025 | 36.9 | 6.0385 | 84.9 | 1.0737 | 132.9 | 0.2805 |
| -11.0 | 58.4807 | 37.0 | 6.0138 | 85.0 | 1.0703 | 133.0 | 0.2799 |
| -10.9 | 58.1608 | 37.1 | 5.9893 | 85.1 | 1.0669 | 133.1 | 0.2792 |
| -10.8 | 57.8429 | 37.2 | 5.9648 | 85.2 | 1.0636 | 133.2 | 0.2785 |
| -10.7 | 57.5270 | 37.3 | 5.9405 | 85.3 | 1.0602 | 133.3 | 0.2778 |
| -10.6 | 57.2129 | 37.4 | 5.9163 | 85.4 | 1.0569 | 133.4 | 0.2771 |
| -10.5 | 56.9008 | 37.5 | 5.8922 | 85.5 | 1.0536 | 133.5 | 0.2764 |
| -10.4 | 56.5906 | 37.6 | 5.8682 | 85.6 | 1.0503 | 133.6 | 0.2757 |
| -10.3 | 56.2823 | 37.7 | 5.8443 | 85.7 | 1.0470 | 133.7 | 0.2751 |
| -10.2 | 55.9759 | 37.8 | 5.8206 | 85.8 | 1.0437 | 133.8 | 0.2744 |
| -10.1 | 55.6713 | 37.9 | 5.7969 | 85.9 | 1.0404 | 133.9 | 0.2737 |
| -10.0 | 55.3686 | 38.0 | 5.7733 | 86.0 | 1.0371 | 134.0 | 0.2730 |
| -9.9 | 55.0677 | 38.1 | 5.7499 | 86.1 | 1.0339 | 134.1 | 0.2724 |
| -9.8 | 54.7687 | 38.2 | 5.7266 | 86.2 | 1.0307 | 134.2 | 0.2717 |
| -9.7 | 54.4715 | 38.3 | 5.7033 | 86.3 | 1.0274 | 134.3 | 0.2710 |
| -9.6 | 54.1761 | 38.4 | 5.6802 | 86.4 | 1.0242 | 134.4 | 0.2704 |
| -9.5 | 53.8825 | 38.5 | 5.6572 | 86.5 | 1.0210 | 134.5 | 0.2697 |
| -9.4 | 53.5906 | 38.6 | 5.6343 | 86.6 | 1.0178 | 134.6 | 0.2691 |
| -9.3 | 53.3006 | 38.7 | 5.6115 | 86.7 | 1.0147 | 134.7 | 0.2684 |
| -9.2 | 53.0123 | 38.8 | 5.5888 | 86.8 | 1.0115 | 134.8 | 0.2677 |
| -9.1 | 52.7257 | 38.9 | 5.5662 | 86.9 | 1.0083 | 134.9 | 0.2671 |
| -9.0 | 52.4409 | 39.0 | 5.5437 | 87.0 | 1.0052 | 135.0 | 0.2664 |
| -8.9 | 52.1578 | 39.1 | 5.5214 | 87.1 | 1.0021 | 135.1 | 0.2658 |
| -8.8 | 51.8764 | 39.2 | 5.4991 | 87.2 | 0.9989 | 135.2 | 0.2651 |
| -8.7 | 51.5967 | 39.3 | 5.4769 | 87.3 | 0.9958 | 135.3 | 0.2645 |
| -8.6 | 51.3187 | 39.4 | 5.4548 | 87.4 | 0.9927 | 135.4 | 0.2639 |
| -8.5 | 51.0424 | 39.5 | 5.4328 | 87.5 | 0.9896 | 135.5 | 0.2632 |
| -8.4 | 50.7678 | 39.6 | 5.4110 | 87.6 | 0.9866 | 135.6 | 0.2626 |
| -8.3 | 50.4948 | 39.7 | 5.3892 | 87.7 | 0.9835 | 135.7 | 0.2619 |
| -8.2 | 50.2234 | 39.8 | 5.3675 | 87.8 | 0.9805 | 135.8 | 0.2613 |
| -8.1 | 49.9537 | 39.9 | 5.3460 | 87.9 | 0.9774 | 135.9 | 0.2607 |
| -8.0 | 49.6856 | 40.0 | 5.3245 | 88.0 | 0.9744 | 136.0 | 0.2600 |
| -7.9 | 49.4191 | 40.1 | 5.3031 | 88.1 | 0.9714 | 136.1 | 0.2594 |
| -7.8 | 49.1543 | 40.2 | 5.2818 | 88.2 | 0.9684 | 136.2 | 0.2588 |
| -7.7 | 48.8910 | 40.3 | 5.2606 | 88.3 | 0.9654 | 136.3 | 0.2581 |
| -7.6 | 48.6293 | 40.4 | 5.2396 | 88.4 | 0.9624 | 136.4 | 0.2575 |
| -7.5 | 48.3691 | 40.5 | 5.2186 | 88.5 | 0.9594 | 136.5 | 0.2569 |
| -7.4 | 48.1106 | 40.6 | 5.1977 | 88.6 | 0.9564 | 136.6 | 0.2563 |
| -7.3 | 47.8535 | 40.7 | 5.1769 | 88.7 | 0.9535 | 136.7 | 0.2557 |
| -7.2 | 47.5980 | 40.8 | 5.1562 | 88.8 | 0.9505 | 136.8 | 0.2550 |
| -7.1 | 47.3441 | 40.9 | 5.1356 | 88.9 | 0.9476 | 136.9 | 0.2544 |
| -7.0 | 47.0916 | 41.0 | 5.1151 | 89.0 | 0.9447 | 137.0 | 0.2538 |
| -6.9 | 46.8407 | 41.1 | 5.0946 | 89.1 | 0.9418 | 137.1 | 0.2532 |
| -6.8 | 46.5913 | 41.2 | 5.0743 | 89.2 | 0.9389 | 137.2 | 0.2526 |
| -6.7 | 46.3433 | 41.3 | 5.0541 | 89.3 | 0.9360 | 137.3 | 0.2520 |
| -6.6 | 46.0968 | 41.4 | 5.0339 | 89.4 | 0.9331 | 137.4 | 0.2514 |
| -6.5 | 45.8518 | 41.5 | 5.0139 | 89.5 | 0.9302 | 137.5 | 0.2508 |
| -6.4 | 45.6083 | 41.6 | 4.9939 | 89.6 | 0.9274 | 137.6 | 0.2502 |
| -6.3 | 45.3662 | 41.7 | 4.9741 | 89.7 | 0.9245 | 137.7 | 0.2495 |
| -6.2 | 45.1256 | 41.8 | 4.9543 | 89.8 | 0.9217 | 137.8 | 0.2489 |
| -6.1 | 44.8864 | 41.9 | 4.9346 | 89.9 | 0.9188 | 137.9 | 0.2484 |
| -6.0 | 44.6486 | 42.0 | 4.9150 | 90.0 | 0.9160 | 138.0 | 0.2478 |
| -5.9 | 44.4122 | 42.1 | 4.8955 | 90.1 | 0.9132 | 138.1 | 0.2472 |
| -5.8 | 44.1772 | 42.2 | 4.8761 | 90.2 | 0.9104 | 138.2 | 0.2466 |
| -5.7 | 43.9436 | 42.3 | 4.8567 | 90.3 | 0.9076 | 138.3 | 0.2460 |
| -5.6 | 43.7114 | 42.4 | 4.8375 | 90.4 | 0.9048 | 138.4 | 0.2454 |
| -5.5 | 43.4806 | 42.5 | 4.8183 | 90.5 | 0.9021 | 138.5 | 0.2448 |
| -5.4 | 43.2511 | 42.6 | 4.7992 | 90.6 | 0.8993 | 138.6 | 0.2442 |
| -5.3 | 43.0230 | 42.7 | 4.7803 | 90.7 | 0.8966 | 138.7 | 0.2436 |
| -5.2 | 42.7963 | 42.8 | 4.7614 | 90.8 | 0.8938 | 138.8 | 0.2430 |
| -5.1 | 42.5709 | 42.9 | 4.7425 | 90.9 | 0.8911 | 138.9 | 0.2425 |
| -5.0 | 42.3468 | 43.0 | 4.7238 | 91.0 | 0.8884 | 139.0 | 0.2419 |
| -4.9 | 42.1240 | 43.1 | 4.7052 | 91.1 | 0.8857 | 139.1 | 0.2413 |
| -4.8 | 41.9026 | 43.2 | 4.6866 | 91.2 | 0.8830 | 139.2 | 0.2407 |
| -4.7 | 41.6825 | 43.3 | 4.6681 | 91.3 | 0.8803 | 139.3 | 0.2401 |
| -4.6 | 41.4636 | 43.4 | 4.6497 | 91.4 | 0.8776 | 139.4 | 0.2396 |
| -4.5 | 41.2461 | 43.5 | 4.6314 | 91.5 | 0.8749 | 139.5 | 0.2390 |
| -4.4 | 41.0298 | 43.6 | 4.6132 | 91.6 | 0.8722 | 139.6 | 0.2384 |
| -4.3 | 40.8148 | 43.7 | 4.5950 | 91.7 | 0.8696 | 139.7 | 0.2379 |
| -4.2 | 40.6011 | 43.8 | 4.5770 | 91.8 | 0.8669 | 139.8 | 0.2373 |
| -4.1 | 40.3886 | 43.9 | 4.5590 | 91.9 | 0.8643 | 139.9 | 0.2367 |
| -4.0 | 40.1774 | 44.0 | 4.5411 | 92.0 | 0.8617 | 140.0 | 0.2362 |
| -3.9 | 39.9674 | 44.1 | 4.5232 | 92.1 | 0.8591 | 140.1 | 0.2356 |
| -3.8 | 39.7586 | 44.2 | 4.5055 | 92.2 | 0.8565 | 140.2 | 0.2351 |
| -3.7 | 39.5511 | 44.3 | 4.4878 | 92.3 | 0.8539 | 140.3 | 0.2345 |
| -3.6 | 39.3447 | 44.4 | 4.4703 | 92.4 | 0.8513 | 140.4 | 0.2339 |
| -3.5 | 39.1396 | 44.5 | 4.4527 | 92.5 | 0.8487 | 140.5 | 0.2334 |
| -3.4 | 38.9357 | 44.6 | 4.4353 | 92.6 | 0.8461 | 140.6 | 0.2328 |
| -3.3 | 38.7330 | 44.7 | 4.4180 | 92.7 | 0.8436 | 140.7 | 0.2323 |
| -3.2 | 38.5315 | 44.8 | 4.4007 | 92.8 | 0.8410 | 140.8 | 0.2317 |
| -3.1 | 38.3311 | 44.9 | 4.3835 | 92.9 | 0.8385 | 140.9 | 0.2312 |
| -3.0 | 38.1319 | 45.0 | 4.3664 | 93.0 | 0.8359 | 141.0 | 0.2306 |
| -2.9 | 37.9339 | 45.1 | 4.3493 | 93.1 | 0.8334 | 141.1 | 0.2301 |
| -2.8 | 37.7370 | 45.2 | 4.3324 | 93.2 | 0.8309 | 141.2 | 0.2295 |
| -2.7 | 37.5413 | 45.3 | 4.3155 | 93.3 | 0.8284 | 141.3 | 0.2290 |
| -2.6 | 37.3467 | 45.4 | 4.2986 | 93.4 | 0.8259 | 141.4 | 0.2285 |
| -2.5 | 37.1532 | 45.5 | 4.2819 | 93.5 | 0.8234 | 141.5 | 0.2279 |
| -2.4 | 36.9609 | 45.6 | 4.2652 | 93.6 | 0.8209 | 141.6 | 0.2274 |
| -2.3 | 36.7697 | 45.7 | 4.2486 | 93.7 | 0.8185 | 141.7 | 0.2268 |
| -2.2 | 36.5796 | 45.8 | 4.2321 | 93.8 | 0.8160 | 141.8 | 0.2263 |
| -2.1 | 36.3906 | 45.9 | 4.2157 | 93.9 | 0.8135 | 141.9 | 0.2258 |
| -2.0 | 36.2027 | 46.0 | 4.1993 | 94.0 | 0.8111 | 142.0 | 0.2252 |
| -1.9 | 36.0159 | 46.1 | 4.1830 | 94.1 | 0.8087 | 142.1 | 0.2247 |
| -1.8 | 35.8301 | 46.2 | 4.1668 | 94.2 | 0.8062 | 142.2 | 0.2242 |
| -1.7 | 35.6455 | 46.3 | 4.1506 | 94.3 | 0.8038 | 142.3 | 0.2237 |
| -1.6 | 35.4619 | 46.4 | 4.1345 | 94.4 | 0.8014 | 142.4 | 0.2231 |
| -1.5 | 35.2794 | 46.5 | 4.1185 | 94.5 | 0.7990 | 142.5 | 0.2226 |
| -1.4 | 35.0979 | 46.6 | 4.1026 | 94.6 | 0.7966 | 142.6 | 0.2221 |
| -1.3 | 34.9175 | 46.7 | 4.0867 | 94.7 | 0.7942 | 142.7 | 0.2216 |
| -1.2 | 34.7381 | 46.8 | 4.0709 | 94.8 | 0.7918 | 142.8 | 0.2210 |
| -1.1 | 34.5597 | 46.9 | 4.0552 | 94.9 | 0.7895 | 142.9 | 0.2205 |
| -1.0 | 34.3824 | 47.0 | 4.0395 | 95.0 | 0.7871 | 143.0 | 0.2200 |
| -0.9 | 34.2061 | 47.1 | 4.0239 | 95.1 | 0.7848 | 143.1 | 0.2195 |
| -0.8 | 34.0308 | 47.2 | 4.0084 | 95.2 | 0.7824 | 143.2 | 0.2190 |
| -0.7 | 33.8566 | 47.3 | 3.9929 | 95.3 | 0.7801 | 143.3 | 0.2185 |
| -0.6 | 33.6833 | 47.4 | 3.9775 | 95.4 | 0.7777 | 143.4 | 0.2180 |
| -0.5 | 33.5110 | 47.5 | 3.9622 | 95.5 | 0.7754 | 143.5 | 0.2174 |
| -0.4 | 33.3397 | 47.6 | 3.9470 | 95.6 | 0.7731 | 143.6 | 0.2169 |
| -0.3 | 33.1694 | 47.7 | 3.9318 | 95.7 | 0.7708 | 143.7 | 0.2164 |
| -0.2 | 33.0001 | 47.8 | 3.9167 | 95.8 | 0.7685 | 143.8 | 0.2159 |
| -0.1 | 32.8317 | 47.9 | 3.9016 | 95.9 | 0.7662 | 143.9 | 0.2154 |
| -0.0 | 32.6644 | 48.0 | 3.8866 | 96.0 | 0.7639 | 144.0 | 0.2149 |
| 0.1 | 32.4979 | 48.1 | 3.8717 | 96.1 | 0.7617 | 144.1 | 0.2144 |
| 0.2 | 32.3324 | 48.2 | 3.8569 | 96.2 | 0.7594 | 144.2 | 0.2139 |
| 0.3 | 32.1679 | 48.3 | 3.8421 | 96.3 | 0.7572 | 144.3 | 0.2134 |
| 0.4 | 32.0043 | 48.4 | 3.8273 | 96.4 | 0.7549 | 144.4 | 0.2129 |
| 0.5 | 31.8417 | 48.5 | 3.8127 | 96.5 | 0.7527 | 144.5 | 0.2124 |
| 0.6 | 31.6799 | 48.6 | 3.7981 | 96.6 | 0.7504 | 144.6 | 0.2119 |
| 0.7 | 31.5191 | 48.7 | 3.7835 | 96.7 | 0.7482 | 144.7 | 0.2114 |
| 0.8 | 31.3593 | 48.8 | 3.7691 | 96.8 | 0.7460 | 144.8 | 0.2110 |
| 0.9 | 31.2003 | 48.9 | 3.7547 | 96.9 | 0.7438 | 144.9 | 0.2105 |
| 1.0 | 31.0422 | 49.0 | 3.7403 | 97.0 | 0.7416 | 145.0 | 0.2100 |
| 1.1 | 30.8850 | 49.1 | 3.7261 | 97.1 | 0.7394 | 145.1 | 0.2095 |
| 1.2 | 30.7288 | 49.2 | 3.7118 | 97.2 | 0.7372 | 145.2 | 0.2090 |
| 1.3 | 30.5734 | 49.3 | 3.6977 | 97.3 | 0.7350 | 145.3 | 0.2085 |
| 1.4 | 30.4189 | 49.4 | 3.6836 | 97.4 | 0.7329 | 145.4 | 0.2080 |
| 1.5 | 30.2652 | 49.5 | 3.6696 | 97.5 | 0.7307 | 145.5 | 0.2076 |
| 1.6 | 30.1125 | 49.6 | 3.6556 | 97.6 | 0.7285 | 145.6 | 0.2071 |
| 1.7 | 29.9606 | 49.7 | 3.6417 | 97.7 | 0.7264 | 145.7 | 0.2066 |
| 1.8 | 29.8096 | 49.8 | 3.6278 | 97.8 | 0.7242 | 145.8 | 0.2061 |
| 1.9 | 29.6594 | 49.9 | 3.6140 | 97.9 | 0.7221 | 145.9 | 0.2056 |
| 2.0 | 29.5101 | 50.0 | 3.6003 | 98.0 | 0.7200 | 146.0 | 0.2052 |
| 2.1 | 29.3616 | 50.1 | 3.5866 | 98.1 | 0.7179 | 146.1 | 0.2047 |
| 2.2 | 29.2140 | 50.2 | 3.5730 | 98.2 | 0.7158 | 146.2 | 0.2042 |
| 2.3 | 29.0672 | 50.3 | 3.5595 | 98.3 | 0.7136 | 146.3 | 0.2037 |
| 2.4 | 28.9212 | 50.4 | 3.5460 | 98.4 | 0.7116 | 146.4 | 0.2033 |
| 2.5 | 28.7761 | 50.5 | 3.5326 | 98.5 | 0.7095 | 146.5 | 0.2028 |
| 2.6 | 28.6317 | 50.6 | 3.5192 | 98.6 | 0.7074 | 146.6 | 0.2023 |
| 2.7 | 28.4882 | 50.7 | 3.5059 | 98.7 | 0.7053 | 146.7 | 0.2019 |
| 2.8 | 28.3455 | 50.8 | 3.4926 | 98.8 | 0.7032 | 146.8 | 0.2014 |
| 2.9 | 28.2036 | 50.9 | 3.4794 | 98.9 | 0.7012 | 146.9 | 0.2010 |
| 3.0 | 28.0625 | 51.0 | 3.4663 | 99.0 | 0.6991 | 147.0 | 0.2005 |
| 3.1 | 27.9222 | 51.1 | 3.4532 | 99.1 | 0.6971 | 147.1 | 0.2000 |
| 3.2 | 27.7827 | 51.2 | 3.4401 | 99.2 | 0.6950 | 147.2 | 0.1996 |
| 3.3 | 27.6439 | 51.3 | 3.4272 | 99.3 | 0.6930 | 147.3 | 0.1991 |
| 3.4 | 27.5060 | 51.4 | 3.4142 | 99.4 | 0.6910 | 147.4 | 0.1987 |
| 3.5 | 27.3688 | 51.5 | 3.4014 | 99.5 | 0.6890 | 147.5 | 0.1982 |
| 3.6 | 27.2324 | 51.6 | 3.3886 | 99.6 | 0.6869 | 147.6 | 0.1977 |
| 3.7 | 27.0967 | 51.7 | 3.3758 | 99.7 | 0.6849 | 147.7 | 0.1973 |
| 3.8 | 26.9618 | 51.8 | 3.3631 | 99.8 | 0.6829 | 147.8 | 0.1968 |
| 3.9 | 26.8277 | 51.9 | 3.3505 | 99.9 | 0.6809 | 147.9 | 0.1964 |
| 4.0 | 26.6943 | 52.0 | 3.3379 | 100.0 | 0.6790 | 148.0 | 0.1959 |
| 4.1 | 26.5617 | 52.1 | 3.3254 | 100.1 | 0.6770 | 148.1 | 0.1955 |
| 4.2 | 26.4298 | 52.2 | 3.3129 | 100.2 | 0.6750 | 148.2 | 0.1951 |
| 4.3 | 26.2986 | 52.3 | 3.3005 | 100.3 | 0.6730 | 148.3 | 0.1946 |
| 4.4 | 26.1682 | 52.4 | 3.2881 | 100.4 | 0.6711 | 148.4 | 0.1942 |
| 4.5 | 26.0385 | 52.5 | 3.2758 | 100.5 | 0.6691 | 148.5 | 0.1937 |
| 4.6 | 25.9095 | 52.6 | 3.2635 | 100.6 | 0.6672 | 148.6 | 0.1933 |
| 4.7 | 25.7813 | 52.7 | 3.2513 | 100.7 | 0.6653 | 148.7 | 0.1928 |
| 4.8 | 25.6537 | 52.8 | 3.2391 | 100.8 | 0.6633 | 148.8 | 0.1924 |
| 4.9 | 25.5269 | 52.9 | 3.2270 | 100.9 | 0.6614 | 148.9 | 0.1920 |
| 5.0 | 25.4008 | 53.0 | 3.2150 | 101.0 | 0.6595 | 149.0 | 0.1915 |
| 5.1 | 25.2754 | 53.1 | 3.2029 | 101.1 | 0.6576 | 149.1 | 0.1911 |
| 5.2 | 25.1506 | 53.2 | 3.1910 | 101.2 | 0.6557 | 149.2 | 0.1907 |
| 5.3 | 25.0266 | 53.3 | 3.1791 | 101.3 | 0.6538 | 149.3 | 0.1902 |
| 5.4 | 24.9032 | 53.4 | 3.1672 | 101.4 | 0.6519 | 149.4 | 0.1898 |
| 5.5 | 24.7806 | 53.5 | 3.1554 | 101.5 | 0.6500 | 149.5 | 0.1894 |
| 5.6 | 24.6586 | 53.6 | 3.1437 | 101.6 | 0.6481 | 149.6 | 0.1889 |
| 5.7 | 24.5373 | 53.7 | 3.1320 | 101.7 | 0.6462 | 149.7 | 0.1885 |
| 5.8 | 24.4167 | 53.8 | 3.1203 | 101.8 | 0.6444 | 149.8 | 0.1881 |
| 5.9 | 24.2967 | 53.9 | 3.1087 | 101.9 | 0.6425 | 149.9 | 0.1877 |
| 6.0 | 24.1774 | 54.0 | 3.0972 | 102.0 | 0.6407 | 150.0 | 0.1872 |
| 6.1 | 24.0587 | 54.1 | 3.0857 | 102.1 | 0.6388 | ||
| 6.2 | 23.9407 | 54.2 | 3.0742 | 102.2 | 0.6370 | ||
| 6.3 | 23.8234 | 54.3 | 3.0628 | 102.3 | 0.6351 | ||
| 6.4 | 23.7067 | 54.4 | 3.0515 | 102.4 | 0.6333 | ||
| 6.5 | 23.5907 | 54.5 | 3.0402 | 102.5 | 0.6315 | ||
| 6.6 | 23.4753 | 54.6 | 3.0289 | 102.6 | 0.6297 | ||
| 6.7 | 23.3600 | 54.7 | 3.0177 | 102.7 | 0.6279 | ||
| 6.8 | 23.2463 | 54.8 | 3.0065 | 102.8 | 0.6261 | ||
| 6.9 | 23.1328 | 54.9 | 2.9954 | 102.9 | 0.6243 | ||
| 7.0 | 23.0199 | 55.0 | 2.9843 | 103.0 | 0.6225 | ||
| 7.1 | 22.9077 | 55.1 | 2.9733 | 103.1 | 0.6207 | ||
| 7.2 | 22.7960 | 55.2 | 2.9623 | 103.2 | 0.6189 | ||
| 7.3 | 22.6850 | 55.3 | 2.9514 | 103.3 | 0.6171 | ||
| 7.4 | 22.5746 | 55.4 | 2.9405 | 103.4 | 0.6154 | ||
| 7.5 | 22.4647 | 55.5 | 2.9297 | 103.5 | 0.6136 | ||
| 7.6 | 22.3555 | 55.6 | 2.9189 | 103.6 | 0.6118 | ||
| 7.7 | 22.2469 | 55.7 | 2.9081 | 103.7 | 0.6101 | ||
| 7.8 | 22.1389 | 55.8 | 2.8974 | 103.8 | 0.6084 | ||
| 7.9 | 22.0314 | 55.9 | 2.8868 | 103.9 | 0.6066 |
上一篇：2K负温度系数NTC温度传感器 下一篇：单端玻封NTC热敏电阻(100KΩ)
