NTC热敏电阻 R100℃ =6.7K B值3950(100度准)
来源：本站 更新时间：2016-12-31 10:04:31 查看次数：

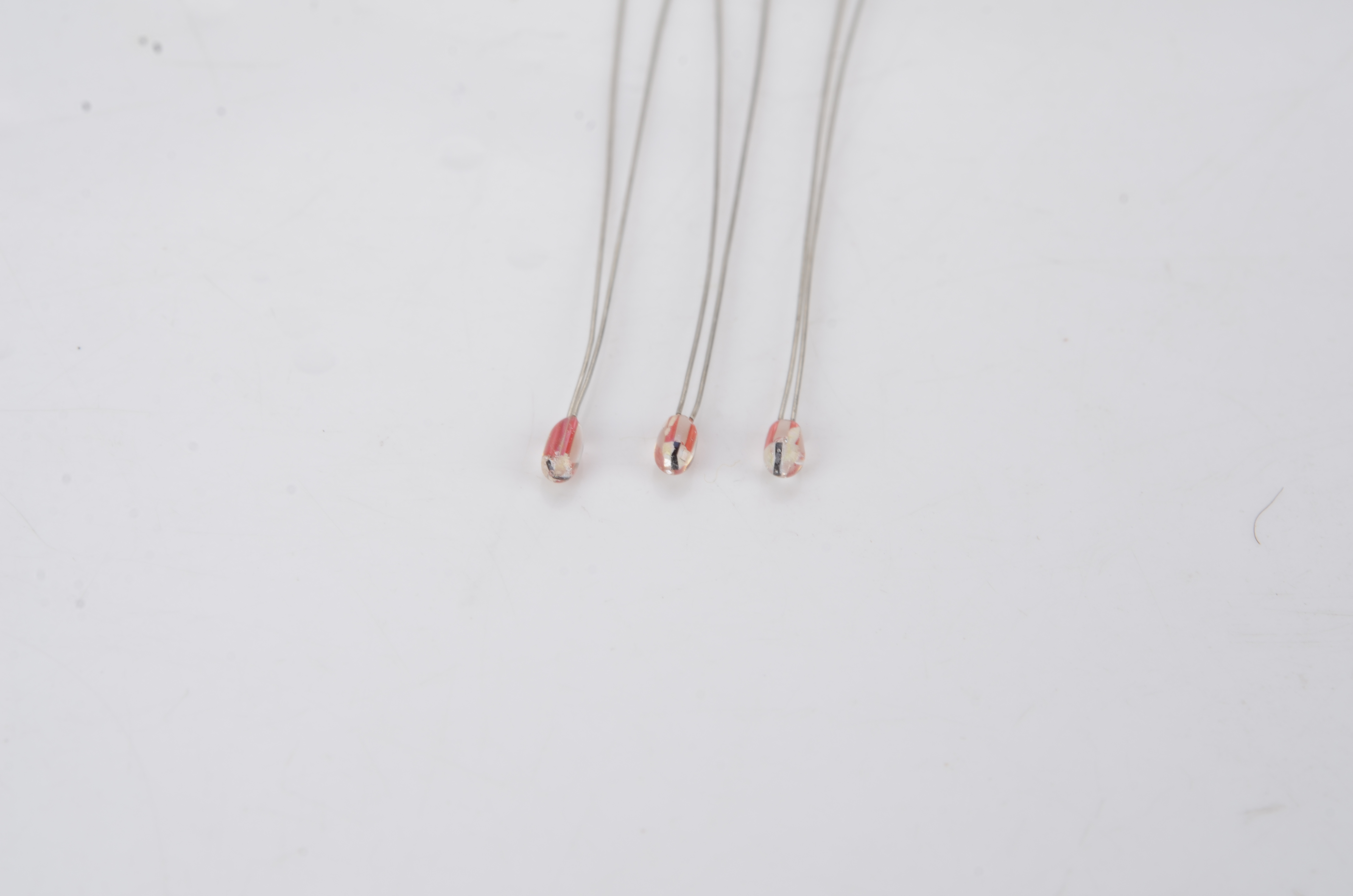

NTC热敏电阻R100℃ =6.7K±2% B值（25/50）=3950±1%负温度系数单端玻封温度传感器高温段（100度 准）温度与阻值对应R/T参数表，NTC芯片由于原子的振动更迅速，在更高的温度下，在更大的距离，电子通过金属，例如，创造更多的碰撞，有效地使电阻率更高。在相对小的温度变化（约100ºC或更低），电阻率随温度的变化ρΔT，NTC热敏电阻在没有特殊要求的情况下阻值以R25度为基准值，本参数应用的温度点标注R值100℃时阻值精度一定会在±1%范围内，R100℃ =6.7K B值=3950NTC热敏电阻（100度 准）主要应用于要求温度100度时候能更精准的响应的开水器、美容仪器、智能电水壶产品等等
NTC热敏电阻 R100℃ =6.7K B值3950(100度准)产品技术参数
| 温度系数类型 | NTC | |
| 导热系数 | -4.6%/°C | |
| 热时间常数 | 8s | |
| 电阻值@25°C | 100 kΩ | |
| 容差 | ±1% | |
| 热敏电阻应用 | 温度测量、检测 | |
| 温度传感器精确度 | ±2% | |
| 热敏电阻元件长度 | 60mm | |
| NTC最低工作温度 | -30°C | |
| NTC最高工作温度 | +300°C |
104K3435单端玻封NTC热敏电阻R/T特性：
TEMPERATURE VS RESISTANCE TABLE
Resistance 6.7k Ohms at 100 deg. C
Resistance Tolerance + / - 2%
B Value 3950K at 25/50deg. C
B Value Tolerance + / - 1%
|
Temp. (deg. C) |
Rmax (k Ohms) |
Rnor (k Ohms) |
Rmin (k Ohms) |
| -30 | 1955.0188 | 1812.2963 | 1679.3210 |
| -29 | 1835.3676 | 1702.4443 | 1578.5160 |
| -28 | 1723.8258 | 1599.9739 | 1484.4259 |
| -27 | 1619.7937 | 1504.3430 | 1396.5619 |
| -26 | 1522.7188 | 1415.0526 | 1314.4730 |
| -25 | 1432.0923 | 1331.6427 | 1237.7435 |
| -24 | 1347.4464 | 1253.6899 | 1165.9907 |
| -23 | 1268.3492 | 1180.8033 | 1098.8607 |
| -22 | 1194.4030 | 1112.6228 | 1036.0276 |
| -21 | 1125.2411 | 1048.8157 | 977.1900 |
| -20 | 1060.5247 | 989.0748 | 922.0693 |
| -19 | 999.9413 | 933.1163 | 870.4086 |
| -18 | 943.2020 | 880.6780 | 821.9697 |
| -17 | 890.0397 | 831.5172 | 776.5319 |
| -16 | 840.2072 | 785.4093 | 733.8915 |
| -15 | 793.4766 | 742.1467 | 693.8599 |
| -14 | 749.6359 | 701.5367 | 656.2613 |
| -13 | 708.4893 | 663.4011 | 620.9336 |
| -12 | 669.8557 | 627.5745 | 587.7266 |
| -11 | 633.5667 | 593.9033 | 556.5003 |
| -10 | 599.4662 | 562.2455 | 527.1251 |
| -9 | 567.4095 | 532.4689 | 499.4800 |
| -8 | 537.2621 | 504.4506 | 473.4534 |
| -7 | 508.8995 | 478.0767 | 448.9412 |
| -6 | 482.2054 | 453.2412 | 425.8463 |
| -5 | 457.0724 | 429.8456 | 404.0789 |
| -4 | 433.4001 | 407.7980 | 383.5548 |
| -3 | 411.0952 | 387.0132 | 364.1961 |
| -2 | 390.0711 | 367.4116 | 345.9299 |
| -1 | 370.2470 | 348.9192 | 328.6885 |
| 0 | 351.5475 | 331.4669 | 312.4084 |
| 1 | 333.9026 | 314.9904 | 297.0306 |
| 2 | 317.2468 | 299.4297 | 282.5002 |
| 3 | 301.5193 | 284.7288 | 268.7657 |
| 4 | 286.6631 | 270.8354 | 255.7792 |
| 5 | 272.6251 | 257.7005 | 243.4955 |
| 6 | 259.3558 | 245.2787 | 231.8730 |
| 7 | 246.8088 | 233.5274 | 220.8723 |
| 8 | 234.9409 | 222.4066 | 210.4568 |
| 9 | 223.7115 | 211.8790 | 200.5921 |
| 10 | 213.0829 | 201.9099 | 191.2462 |
| 11 | 203.0196 | 192.4665 | 182.3889 |
| 12 | 193.4887 | 183.5183 | 173.9920 |
| 13 | 184.4589 | 175.0366 | 166.0292 |
| 14 | 175.9013 | 166.9947 | 158.4756 |
| 15 | 167.7887 | 159.3673 | 151.3081 |
| 16 | 160.0955 | 152.1310 | 144.5048 |
| 17 | 152.7979 | 145.2635 | 138.0453 |
| 18 | 145.8734 | 138.7441 | 131.9105 |
| 19 | 139.3010 | 132.5534 | 126.0822 |
| 20 | 133.0609 | 126.6730 | 120.5436 |
| 21 | 127.1346 | 121.0859 | 115.2788 |
| 22 | 121.5047 | 115.7757 | 110.2727 |
| 23 | 116.1547 | 110.7273 | 105.5113 |
| 24 | 111.0694 | 105.9266 | 100.9815 |
| 25 | 106.2343 | 101.3600 | 96.6707 |
| 26 | 101.6357 | 97.0149 | 92.5672 |
| 27 | 97.2610 | 92.8795 | 88.6600 |
| 28 | 93.0980 | 88.9426 | 84.9387 |
| 29 | 89.1354 | 85.1936 | 81.3935 |
| 30 | 85.3626 | 81.6226 | 78.0152 |
| 31 | 81.7695 | 78.2202 | 74.7950 |
| 32 | 78.3467 | 74.9777 | 71.7248 |
| 33 | 75.0852 | 71.8867 | 68.7969 |
| 34 | 71.9766 | 68.9394 | 66.0039 |
| 35 | 69.0130 | 66.1284 | 63.3389 |
| 36 | 66.1869 | 63.4467 | 60.7955 |
| 37 | 63.4913 | 60.8877 | 58.3675 |
| 38 | 60.9194 | 58.4452 | 56.0490 |
| 39 | 58.4650 | 56.1133 | 53.8347 |
| 40 | 56.1222 | 53.8865 | 51.7192 |
| 41 | 53.8852 | 51.7595 | 49.6978 |
| 42 | 51.7489 | 49.7274 | 47.7658 |
| 43 | 49.7082 | 47.7855 | 45.9187 |
| 44 | 47.7584 | 45.9293 | 44.1525 |
| 45 | 45.8949 | 44.1546 | 42.4632 |
| 46 | 44.1136 | 42.4574 | 40.8471 |
| 47 | 42.4104 | 40.8341 | 39.3006 |
| 48 | 40.7815 | 39.2810 | 37.8205 |
| 49 | 39.2234 | 37.7948 | 36.4036 |
| 50 | 37.7326 | 36.3722 | 35.0468 |
| 51 | 36.3058 | 35.0102 | 33.7474 |
| 52 | 34.9401 | 33.7061 | 32.5026 |
| 53 | 33.6326 | 32.4569 | 31.3099 |
| 54 | 32.3804 | 31.2603 | 30.1668 |
| 55 | 31.1810 | 30.1136 | 29.0711 |
| 56 | 30.0319 | 29.0147 | 28.0206 |
| 57 | 28.9308 | 27.9612 | 27.0132 |
| 58 | 27.8754 | 26.9511 | 26.0470 |
| 59 | 26.8637 | 25.9824 | 25.1200 |
| 60 | 25.8936 | 25.0532 | 24.2305 |
| 61 | 24.9632 | 24.1618 | 23.3768 |
| 62 | 24.0707 | 23.3064 | 22.5573 |
| 63 | 23.2144 | 22.4853 | 21.7705 |
| 64 | 22.3927 | 21.6972 | 21.0148 |
| 65 | 21.6040 | 20.9404 | 20.2891 |
| 66 | 20.8468 | 20.2136 | 19.5918 |
| 67 | 20.1198 | 19.5156 | 18.9219 |
| 68 | 19.4216 | 18.8449 | 18.2780 |
| 69 | 18.7509 | 18.2004 | 17.6591 |
| 70 | 18.1065 | 17.5811 | 17.0640 |
| 71 | 17.4873 | 16.9857 | 16.4918 |
| 72 | 16.8922 | 16.4132 | 15.9415 |
| 73 | 16.3201 | 15.8628 | 15.4121 |
| 74 | 15.7700 | 15.3333 | 14.9028 |
| 75 | 15.2411 | 14.8240 | 14.4126 |
| 76 | 14.7323 | 14.3340 | 13.9409 |
| 77 | 14.2428 | 13.8624 | 13.4868 |
| 78 | 13.7719 | 13.4085 | 13.0495 |
| 79 | 13.3187 | 12.9716 | 12.6285 |
| 80 | 12.8825 | 12.5509 | 12.2229 |
| 81 | 12.4626 | 12.1458 | 11.8323 |
| 82 | 12.0583 | 11.7556 | 11.4559 |
| 83 | 11.6689 | 11.3797 | 11.0932 |
| 84 | 11.2939 | 11.0175 | 10.7436 |
| 85 | 10.9326 | 10.6685 | 10.4066 |
| 86 | 10.5845 | 10.3321 | 10.0817 |
| 87 | 10.2491 | 10.0079 | 9.7684 |
| 88 | 9.9258 | 9.6953 | 9.4663 |
| 89 | 9.6141 | 9.3938 | 9.1749 |
| 90 | 9.3136 | 9.1031 | 8.8937 |
| 91 | 9.0239 | 8.8226 | 8.6224 |
| 92 | 8.7444 | 8.5520 | 8.3606 |
| 93 | 8.4748 | 8.2910 | 8.1079 |
| 94 | 8.2148 | 8.0390 | 7.8639 |
| 95 | 7.9638 | 7.7959 | 7.6284 |
| 96 | 7.7216 | 7.5611 | 7.4009 |
| 97 | 7.4879 | 7.3344 | 7.1813 |
| 98 | 7.2622 | 7.1156 | 6.9691 |
| 99 | 7.0444 | 6.9042 | 6.7641 |
| 100 | 6.8340 | 6.7000 | 6.5660 |
| 101 | 6.6348 | 6.5027 | 6.3708 |
| 102 | 6.4422 | 6.3121 | 6.1822 |
| 103 | 6.2561 | 6.1279 | 6.0000 |
| 104 | 6.0761 | 5.9499 | 5.8240 |
| 105 | 5.9021 | 5.7778 | 5.6539 |
| 106 | 5.7339 | 5.6115 | 5.4895 |
| 107 | 5.5711 | 5.4506 | 5.3306 |
| 108 | 5.4137 | 5.2950 | 5.1769 |
| 109 | 5.2613 | 5.1446 | 5.0284 |
| 110 | 5.1139 | 4.9990 | 4.8847 |
| 111 | 4.9713 | 4.8582 | 4.7457 |
| 112 | 4.8333 | 4.7219 | 4.6113 |
| 113 | 4.6996 | 4.5901 | 4.4813 |
| 114 | 4.5702 | 4.4624 | 4.3555 |
| 115 | 4.4450 | 4.3389 | 4.2337 |
| 116 | 4.3236 | 4.2193 | 4.1158 |
| 117 | 4.2061 | 4.1035 | 4.0018 |
| 118 | 4.0923 | 3.9914 | 3.8913 |
| 119 | 3.9821 | 3.8827 | 3.7844 |
| 120 | 3.8752 | 3.7775 | 3.6808 |
| 121 | 3.7717 | 3.6756 | 3.5805 |
| 122 | 3.6714 | 3.5769 | 3.4834 |
| 123 | 3.5741 | 3.4812 | 3.3893 |
| 124 | 3.4798 | 3.3884 | 3.2981 |
| 125 | 3.3884 | 3.2985 | 3.2097 |
| 126 | 3.2998 | 3.2114 | 3.1241 |
| 127 | 3.2139 | 3.1269 | 3.0411 |
| 128 | 3.1305 | 3.0450 | 2.9607 |
| 129 | 3.0496 | 2.9656 | 2.8827 |
| 130 | 2.9712 | 2.8885 | 2.8071 |
| 131 | 2.8951 | 2.8138 | 2.7337 |
| 132 | 2.8213 | 2.7413 | 2.6626 |
| 133 | 2.7496 | 2.6710 | 2.5936 |
| 134 | 2.6800 | 2.6028 | 2.5267 |
| 135 | 2.6125 | 2.5365 | 2.4618 |
| 136 | 2.5470 | 2.4723 | 2.3988 |
| 137 | 2.4833 | 2.4099 | 2.3376 |
| 138 | 2.4215 | 2.3493 | 2.2783 |
| 139 | 2.3615 | 2.2905 | 2.2207 |
| 140 | 2.3032 | 2.2334 | 2.1648 |
| 141 | 2.2466 | 2.1780 | 2.1105 |
| 142 | 2.1916 | 2.1241 | 2.0578 |
| 143 | 2.1382 | 2.0718 | 2.0067 |
| 144 | 2.0863 | 2.0210 | 1.9570 |
| 145 | 2.0358 | 1.9716 | 1.9087 |
| 146 | 1.9868 | 1.9236 | 1.8618 |
| 147 | 1.9391 | 1.8770 | 1.8162 |
| 148 | 1.8927 | 1.8317 | 1.7720 |
| 149 | 1.8477 | 1.7877 | 1.7289 |
| 150 | 1.8039 | 1.7449 | 1.6871 |
| 151 | 1.7613 | 1.7033 | 1.6465 |
| 152 | 1.7199 | 1.6628 | 1.6070 |
| 153 | 1.6796 | 1.6235 | 1.5686 |
| 154 | 1.6404 | 1.5852 | 1.5313 |
| 155 | 1.6023 | 1.5480 | 1.4950 |
| 156 | 1.5652 | 1.5118 | 1.4597 |
| 157 | 1.5291 | 1.4766 | 1.4254 |
| 158 | 1.4940 | 1.4424 | 1.3920 |
| 159 | 1.4598 | 1.4091 | 1.3595 |
| 160 | 1.4266 | 1.3766 | 1.3279 |
| 161 | 1.3942 | 1.3451 | 1.2972 |
| 162 | 1.3627 | 1.3144 | 1.2673 |
| 163 | 1.3320 | 1.2845 | 1.2381 |
| 164 | 1.3021 | 1.2554 | 1.2098 |
| 165 | 1.2730 | 1.2270 | 1.1822 |
| 166 | 1.2447 | 1.1994 | 1.1554 |
| 167 | 1.2171 | 1.1726 | 1.1293 |
| 168 | 1.1902 | 1.1464 | 1.1038 |
| 169 | 1.1640 | 1.1209 | 1.0790 |
| 170 | 1.1385 | 1.0961 | 1.0549 |
| 171 | 1.1136 | 1.0719 | 1.0314 |
| 172 | 1.0894 | 1.0484 | 1.0085 |
| 173 | 1.0658 | 1.0255 | 0.9863 |
| 174 | 1.0428 | 1.0031 | 0.9645 |
| 175 | 1.0203 | 0.9813 | 0.9434 |
| 176 | 0.9985 | 0.9601 | 0.9228 |
| 177 | 0.9772 | 0.9394 | 0.9027 |
| 178 | 0.9564 | 0.9192 | 0.8831 |
| 179 | 0.9362 | 0.8995 | 0.8640 |
| 180 | 0.9164 | 0.8804 | 0.8454 |
| 181 | 0.8971 | 0.8617 | 0.8273 |
| 182 | 0.8783 | 0.8435 | 0.8096 |
| 183 | 0.8600 | 0.8257 | 0.7924 |
| 184 | 0.8421 | 0.8084 | 0.7756 |
| 185 | 0.8247 | 0.7915 | 0.7592 |
| 186 | 0.8077 | 0.7750 | 0.7433 |
| 187 | 0.7911 | 0.7589 | 0.7277 |
| 188 | 0.7749 | 0.7432 | 0.7125 |
| 189 | 0.7591 | 0.7279 | 0.6977 |
| 190 | 0.7437 | 0.7129 | 0.6832 |
| 191 | 0.7286 | 0.6983 | 0.6691 |
| 192 | 0.7139 | 0.6841 | 0.6553 |
| 193 | 0.6996 | 0.6702 | 0.6419 |
| 194 | 0.6855 | 0.6567 | 0.6288 |
| 195 | 0.6719 | 0.6434 | 0.6160 |
| 196 | 0.6585 | 0.6305 | 0.6035 |
| 197 | 0.6455 | 0.6179 | 0.5913 |
| 198 | 0.6327 | 0.6056 | 0.5794 |
| 199 | 0.6203 | 0.5936 | 0.5678 |
| 200 | 0.6081 | 0.5818 | 0.5564 |
| 201 | 0.5963 | 0.5704 | 0.5453 |
| 202 | 0.5847 | 0.5592 | 0.5345 |
| 203 | 0.5734 | 0.5482 | 0.5240 |
| 204 | 0.5623 | 0.5375 | 0.5137 |
| 205 | 0.5515 | 0.5271 | 0.5036 |
| 206 | 0.5409 | 0.5169 | 0.4937 |
| 207 | 0.5306 | 0.5069 | 0.4841 |
| 208 | 0.5205 | 0.4972 | 0.4747 |
| 209 | 0.5106 | 0.4877 | 0.4655 |
| 210 | 0.5010 | 0.4783 | 0.4537 |
| 211 | 0.4915 | 0.4693 | 0.4478 |
| 212 | 0.4823 | 0.4604 | 0.4392 |
| 213 | 0.4733 | 0.4517 | 0.4309 |
| 214 | 0.4645 | 0.4432 | 0.4227 |
| 215 | 0.4559 | 0.4349 | 0.4147 |
| 216 | 0.4474 | 0.4268 | 0.4069 |
| 217 | 0.4392 | 0.4100 | 0.3990 |
| 218 | 0.4260 | 0.4111 | 0.3950 |
| 219 | 0.4284 | 0.4035 | 0.3899 |
| 220 | 0.4155 | 0.3960 | 0.3773 |
| 221 | 0.4055 | 0.3934 | 0.3703 |
| 222 | 0.4014 | 0.3900 | 0.3600 |
| 223 | 0.3934 | 0.3758 | 0.3568 |
| 224 | 0.3863 | 0.3679 | 0.3502 |
| 225 | 0.3794 | 0.3613 | 0.3439 |
| 226 | 0.3726 | 0.3548 | 0.3376 |
| 227 | 0.3660 | 0.3450 | 0.3315 |
| 228 | 0.3500 | 0.3575 | 0.3255 |
| 229 | 0.3532 | 0.3977 | 0.3196 |
| 230 | 0.3470 | 0.3300 | 0.3139 |
| 231 | 0.3580 | 0.3242 | 0.3083 |
| 232 | 0.3349 | 0.3185 | 0.3028 |
| 233 | 0.3291 | 0.3129 | 0.2974 |
| 234 | 0.3234 | 0.3074 | 0.2921 |
| 235 | 0.3178 | 0.3021 | 0.2870 |
| 236 | 0.3123 | 0.2968 | 0.2820 |
| 237 | 0.3070 | 0.2917 | 0.2770 |
| 238 | 0.3017 | 0.2866 | 0.2722 |
| 239 | 0.2966 | 0.2817 | 0.2675 |
| 240 | 0.2915 | 0.2769 | 0.2628 |
| 241 | 0.2866 | 0.2721 | 0.2583 |
| 242 | 0.2818 | 0.2675 | 0.2538 |
| 243 | 0.2770 | 0.2630 | 0.2495 |
| 244 | 0.2724 | 0.2585 | 0.2452 |
| 245 | 0.2679 | 0.2541 | 0.2410 |
| 246 | 0.2634 | 0.2499 | 0.2370 |
| 247 | 0.2590 | 0.2457 | 0.2330 |
| 248 | 0.2548 | 0.2416 | 0.2290 |
| 249 | 0.2506 | 0.2376 | 0.2252 |
| 250 | 0.2464 | 0.2336 | 0.2214 |
| 251 | 0.2424 | 0.2298 | 0.2177 |
| 252 | 0.2385 | 0.2260 | 0.2141 |
| 253 | 0.2346 | 0.2223 | 0.2106 |
| 254 | 0.2308 | 0.2187 | 0.2071 |
| 255 | 0.2271 | 0.2151 | 0.2037 |
| 256 | 0.2234 | 0.2116 | 0.2003 |
| 257 | 0.2199 | 0.2082 | 0.1971 |
| 258 | 0.2163 | 0.2048 | 0.1939 |
| 259 | 0.2129 | 0.2015 | 0.1907 |
| 260 | 0.2095 | 0.1983 | 0.1876 |
| 261 | 0.2062 | 0.1951 | 0.1846 |
| 262 | 0.2030 | 0.1920 | 0.1816 |
| 263 | 0.1998 | 0.1890 | 0.1787 |
| 264 | 0.1967 | 0.1860 | 0.1759 |
| 265 | 0.1936 | 0.1831 | 0.1731 |
| 266 | 0.1906 | 0.1802 | 0.1703 |
| 267 | 0.1876 | 0.1774 | 0.1677 |
| 268 | 0.1847 | 0.1746 | 0.1650 |
| 269 | 0.1819 | 0.1719 | 0.1624 |
| 270 | 0.1791 | 0.1693 | 0.1599 |
| 271 | 0.1764 | 0.1667 | 0.1574 |
| 272 | 0.1737 | 0.1641 | 0.1550 |
| 273 | 0.1711 | 0.1616 | 0.1526 |
| 274 | 0.1685 | 0.1591 | 0.1502 |
| 275 | 0.1659 | 0.1567 | 0.1479 |
| 276 | 0.1635 | 0.1543 | 0.1456 |
| 277 | 0.1610 | 0.1520 | 0.1434 |
| 278 | 0.1586 | 0.1497 | 0.1412 |
| 279 | 0.1562 | 0.1474 | 0.1391 |
| 280 | 0.1539 | 0.1452 | 0.1370 |
| 281 | 0.1517 | 0.1431 | 0.1349 |
| 282 | 0.1494 | 0.1410 | 0.1329 |
| 283 | 0.1472 | 0.1389 | 0.1309 |
| 284 | 0.1451 | 0.1368 | 0.1290 |
| 285 | 0.1430 | 0.1348 | 0.1270 |
| 286 | 0.1409 | 0.1328 | 0.1252 |
| 287 | 0.1389 | 0.1309 | 0.1233 |
| 288 | 0.1369 | 0.1290 | 0.1215 |
| 289 | 0.1349 | 0.1271 | 0.1197 |
| 290 | 0.1330 | 0.1253 | 0.1180 |
| 291 | 0.1311 | 0.1235 | 0.1163 |
| 292 | 0.1292 | 0.1217 | 0.1146 |
| 293 | 0.1274 | 0.1199 | 0.1129 |
| 294 | 0.1256 | 0.1182 | 0.1113 |
| 295 | 0.1238 | 0.1166 | 0.1097 |
| 296 | 0.1221 | 0.1149 | 0.1081 |
| 297 | 0.1204 | 0.1133 | 0.1066 |
| 298 | 0.1187 | 0.1117 | 0.1051 |
| 299 | 0.1170 | 0.1101 | 0.1036 |
| 300 | 0.1154 | 0.1086 | 0.1021 |
负温度系数NTC热敏电阻 R100℃ =6.7K±2% B值3950±1%高温段(100度准)温度与阻值对应R/T参数表由专业NTC热敏电阻生产厂家富温传感技术公司提供，如需更多热敏电阻参数阻值表请致电本公司。
