NTC热敏电阻1.388兆 B=4600
来源：本站 更新时间：2016-11-08 09:04:39 查看次数：

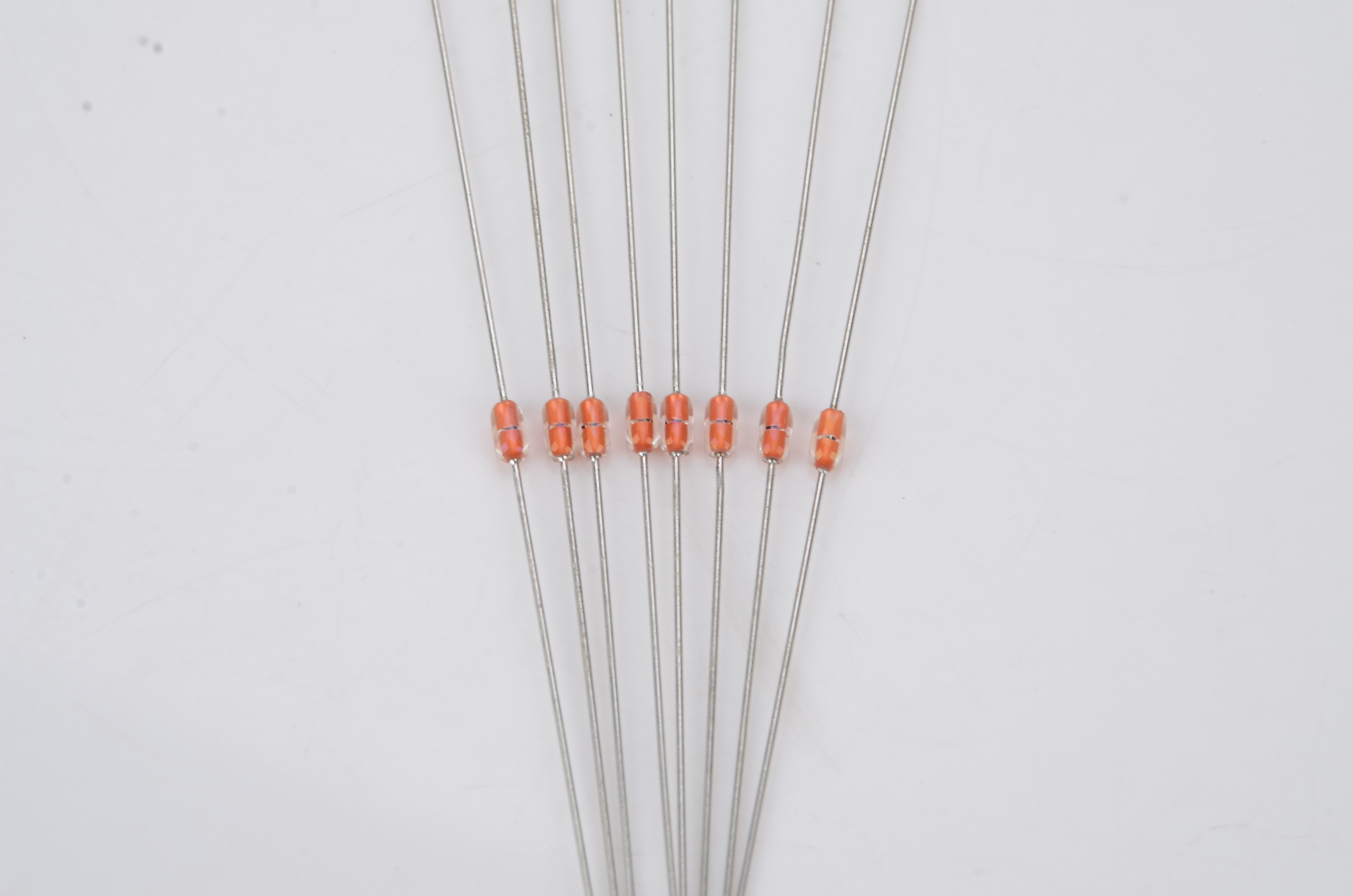

耐高温MF58玻封NTC热敏电阻R25=1.388兆 B25/50=4600±1%(ROHS)温度与电阻对应R/T数据表，全系列温度传感器产品品质全面升级，年/阻值漂移小于1PPM(10MΩ-1%-1ppm-250w)单端玻璃NTC是具有有体积小,高精度,高可靠,良好的耐热循环能力.
Resistance 1388k Ohms at 25deg. C
Resistance Tolerance + / - 1 %
B Value 4600K at 25/50deg. C
B Value Tolerance + / - 1%
|
Temp. (deg. C) |
Rmax (k Ohms) |
Rnor (k Ohms) |
Rmin (k Ohms) |
| 0 | 5649.3813 | 5516.7915 | 5386.7744 |
| 1 | 5320.5049 | 5198.7197 | 5079.2144 |
| 2 | 5012.6812 | 4900.8330 | 4791.0015 |
| 3 | 4724.4468 | 4621.7393 | 4520.8125 |
| 4 | 4454.4463 | 4360.1479 | 4267.4189 |
| 5 | 4201.4263 | 4114.8662 | 4029.6863 |
| 6 | 3964.2246 | 3884.7861 | 3806.5586 |
| 7 | 3741.7666 | 3668.8833 | 3597.0596 |
| 8 | 3533.0562 | 3466.2073 | 3400.2830 |
| 9 | 3337.1677 | 3275.8748 | 3215.3860 |
| 10 | 3153.2449 | 3097.0676 | 3041.5872 |
| 11 | 2980.4922 | 2929.0264 | 2878.1614 |
| 12 | 2818.1711 | 2771.0442 | 2724.4329 |
| 13 | 2665.5962 | 2622.4653 | 2579.7744 |
| 14 | 2522.1299 | 2482.6799 | 2443.6028 |
| 15 | 2387.1797 | 2351.1204 | 2315.3740 |
| 16 | 2260.1958 | 2227.2598 | 2194.5842 |
| 17 | 2140.6653 | 2110.6062 | 2080.7610 |
| 18 | 2028.1117 | 2000.7028 | 1973.4669 |
| 19 | 1922.0912 | 1897.1233 | 1872.2925 |
| 20 | 1822.1904 | 1799.4709 | 1776.8571 |
| 21 | 1728.0242 | 1707.3755 | 1686.8048 |
| 22 | 1639.2335 | 1620.4921 | 1601.8046 |
| 23 | 1555.4841 | 1538.4987 | 1521.5465 |
| 24 | 1476.4631 | 1461.0947 | 1445.7417 |
| 25 | 1401.8800 | 1388.0000 | 1374.1200 |
| 26 | 1332.8219 | 1318.9524 | 1305.0968 |
| 27 | 1267.5333 | 1253.7072 | 1239.9077 |
| 28 | 1205.7897 | 1192.0355 | 1178.3204 |
| 29 | 1147.3805 | 1133.7238 | 1120.1176 |
| 30 | 1092.1086 | 1078.5718 | 1065.0962 |
| 31 | 1039.7898 | 1026.3925 | 1013.0663 |
| 32 | 990.2515 | 977.0106 | 963.8502 |
| 33 | 943.3321 | 930.2623 | 917.2818 |
| 34 | 898.8799 | 885.9939 | 873.2053 |
| 35 | 856.7531 | 844.0616 | 831.4750 |
| 36 | 816.8184 | 804.3306 | 791.9545 |
| 37 | 778.9509 | 766.6743 | 754.5157 |
| 38 | 743.0334 | 730.9743 | 719.0390 |
| 39 | 708.9561 | 697.1194 | 685.4117 |
| 40 | 676.6155 | 665.0051 | 653.5284 |
| 41 | 645.9148 | 634.5334 | 623.2903 |
| 42 | 616.7627 | 605.6124 | 594.6043 |
| 43 | 589.0737 | 578.1558 | 567.3834 |
| 44 | 562.7673 | 552.0821 | 541.5455 |
| 45 | 537.7679 | 527.3152 | 517.0140 |
| 46 | 514.0042 | 503.7833 | 493.7164 |
| 47 | 491.4091 | 481.4189 | 471.5847 |
| 48 | 469.9197 | 460.1585 | 450.5550 |
| 49 | 449.4766 | 439.9424 | 430.5674 |
| 50 | 430.0240 | 420.7143 | 411.5650 |
| 51 | 411.5091 | 402.4214 | 393.4949 |
| 52 | 393.8824 | 385.0136 | 376.3068 |
| 53 | 377.0970 | 368.4441 | 359.9537 |
| 54 | 361.1090 | 352.6685 | 344.3909 |
| 55 | 345.8766 | 337.6451 | 329.5766 |
| 56 | 331.3606 | 323.3346 | 315.4714 |
| 57 | 317.5242 | 309.6998 | 302.0381 |
| 58 | 304.3322 | 296.7057 | 289.2414 |
| 59 | 291.7518 | 284.3193 | 277.0485 |
| 60 | 279.7517 | 272.5093 | 265.4278 |
| 61 | 268.3435 | 261.2463 | 254.3501 |
| 62 | 257.3766 | 250.5024 | 243.7875 |
| 63 | 246.9474 | 240.2514 | 233.7135 |
| 64 | 236.9903 | 230.4684 | 224.1036 |
| 65 | 227.4817 | 221.1300 | 214.9342 |
| 66 | 218.3994 | 212.2139 | 206.1830 |
| 67 | 209.7223 | 203.6992 | 197.8292 |
| 68 | 201.4306 | 195.5659 | 189.8529 |
| 69 | 193.5054 | 187.7953 | 182.2355 |
| 70 | 185.9289 | 180.3696 | 174.9590 |
| 71 | 178.6843 | 173.2720 | 168.0068 |
| 72 | 171.7554 | 166.4865 | 161.3630 |
| 73 | 165.1272 | 159.9980 | 155.0126 |
| 74 | 158.7853 | 153.7922 | 148.9413 |
| 75 | 152.7161 | 147.8556 | 143.1355 |
| 76 | 146.9066 | 142.1753 | 137.5827 |
| 77 | 141.3445 | 136.7391 | 132.2705 |
| 78 | 136.0184 | 131.5355 | 127.1876 |
| 79 | 130.9172 | 126.5535 | 122.3230 |
| 80 | 126.0303 | 121.7827 | 117.6664 |
| 81 | 121.3479 | 117.2132 | 113.2081 |
| 82 | 116.8605 | 112.8358 | 108.9388 |
| 83 | 112.5592 | 108.6414 | 104.8496 |
| 84 | 108.4354 | 104.6217 | 100.9321 |
| 85 | 104.4811 | 100.7687 | 97.1785 |
| 86 | 100.6886 | 97.0747 | 93.5811 |
| 87 | 97.0506 | 93.5325 | 90.1329 |
| 88 | 93.5601 | 90.1352 | 86.8270 |
| 89 | 90.2105 | 86.8762 | 83.6568 |
| 90 | 86.9957 | 83.7495 | 80.6164 |
| 91 | 83.9094 | 80.7489 | 77.6997 |
| 92 | 80.9462 | 77.8690 | 74.9014 |
| 93 | 78.1006 | 75.1044 | 72.2160 |
| 94 | 75.3673 | 72.4500 | 69.6386 |
| 95 | 72.7416 | 69.9008 | 67.1643 |
| 96 | 70.2187 | 67.4525 | 64.7887 |
| 97 | 67.7943 | 65.1004 | 62.5073 |
| 98 | 65.4639 | 62.8405 | 60.3161 |
| 99 | 63.2238 | 60.6687 | 58.2111 |
| 100 | 61.0698 | 58.5813 | 56.1885 |
| 101 | 58.9984 | 56.5746 | 54.2449 |
| 102 | 57.0061 | 54.6452 | 52.3768 |
| 103 | 55.0896 | 52.7898 | 50.5809 |
| 104 | 53.2456 | 51.0052 | 48.8542 |
| 105 | 51.4711 | 49.2885 | 47.1938 |
| 106 | 49.7633 | 47.6369 | 45.5968 |
| 107 | 48.1193 | 46.0475 | 44.0605 |
| 108 | 46.5365 | 44.5179 | 42.5825 |
| 109 | 45.0125 | 43.0454 | 41.1602 |
| 110 | 43.5447 | 41.6278 | 39.7913 |
| 111 | 42.1308 | 40.2628 | 38.4737 |
| 112 | 40.7688 | 38.9482 | 37.2052 |
| 113 | 39.4564 | 37.6819 | 35.9837 |
| 114 | 38.1917 | 36.4621 | 34.8074 |
| 115 | 36.9727 | 35.2868 | 33.6744 |
| 116 | 35.7977 | 34.1542 | 32.5829 |
| 117 | 34.6648 | 33.0626 | 31.5313 |
| 118 | 33.5724 | 32.0104 | 30.5179 |
| 119 | 32.5189 | 30.9959 | 29.5412 |
| 120 | 31.5028 | 30.0177 | 28.5998 |
| 121 | 30.5225 | 29.0744 | 27.6922 |
| 122 | 29.5768 | 28.1645 | 26.8170 |
| 123 | 28.6641 | 27.2868 | 25.9731 |
| 124 | 27.7833 | 26.4400 | 25.1591 |
| 125 | 26.9331 | 25.6228 | 24.3739 |
| 126 | 26.1123 | 24.8343 | 23.6164 |
| 127 | 25.3100 | 24.0731 | 22.8854 |
| 128 | 24.5546 | 23.3383 | 22.1800 |
| 129 | 23.8156 | 22.6288 | 21.4991 |
| 130 | 23.1017 | 21.9438 | 20.8418 |
| 131 | 22.4120 | 21.2822 | 20.2073 |
| 132 | 21.7457 | 20.6432 | 19.5945 |
| 133 | 21.1018 | 20.0258 | 19.0028 |
| 134 | 20.4795 | 19.4294 | 18.4313 |
| 135 | 19.8781 | 18.8531 | 17.8792 |
| 136 | 19.2966 | 18.2961 | 17.3458 |
| 137 | 18.7344 | 17.7578 | 16.8304 |
| 138 | 18.1908 | 17.2374 | 16.3323 |
| 139 | 17.6651 | 16.7343 | 15.8509 |
| 140 | 17.1567 | 16.2478 | 15.3856 |
| 141 | 16.6648 | 15.7774 | 14.9357 |
| 142 | 16.1889 | 15.3224 | 14.5008 |
| 143 | 15.7285 | 14.8823 | 14.0801 |
| 144 | 15.2830 | 14.4565 | 13.6733 |
| 145 | 14.8517 | 14.0445 | 13.2799 |
| 146 | 14.4343 | 13.6459 | 12.8992 |
| 147 | 14.0303 | 13.2601 | 12.5309 |
| 148 | 13.6391 | 12.8867 | 12.1746 |
| 149 | 13.2603 | 12.5252 | 11.8297 |
| 150 | 12.8934 | 12.1752 | 11.4959 |
| 151 | 12.5381 | 11.8364 | 11.1728 |
| 152 | 12.1939 | 11.5082 | 10.8600 |
| 153 | 11.8605 | 11.1904 | 10.5571 |
| 154 | 11.5375 | 10.8826 | 10.2639 |
| 155 | 11.2244 | 10.5844 | 9.9799 |
| 156 | 10.9211 | 10.2955 | 9.7048 |
| 157 | 10.6271 | 10.0156 | 9.4383 |
| 158 | 10.3421 | 9.7443 | 9.1801 |
| 159 | 10.0658 | 9.4814 | 8.9300 |
| 160 | 9.7979 | 9.2265 | 8.6876 |
| 161 | 9.5381 | 8.9795 | 8.4527 |
| 162 | 9.2862 | 8.7399 | 8.2250 |
| 163 | 9.0419 | 8.5077 | 8.0043 |
| 164 | 8.8049 | 8.2825 | 7.7903 |
| 165 | 8.4300 | 8.0641 | 7.5828 |
| 166 | 8.3520 | 7.8522 | 7.3817 |
| 167 | 8.1355 | 7.6467 | 7.1866 |
| 168 | 7.9255 | 7.4500 | 6.9973 |
| 169 | 7.7217 | 7.2539 | 6.8138 |
| 170 | 7.5238 | 7.0662 | 6.6357 |
| 171 | 7.3318 | 6.8840 | 6.4400 |
| 172 | 7.1453 | 6.7072 | 6.2953 |
| 173 | 6.9643 | 6.5356 | 6.1326 |
| 174 | 6.7885 | 6.3690 | 5.9748 |
| 175 | 6.6178 | 6.2072 | 5.8215 |
| 176 | 6.4260 | 6.0501 | 5.6727 |
| 177 | 6.2909 | 5.8976 | 5.5283 |
| 178 | 6.1345 | 5.7495 | 5.3881 |
| 179 | 5.9825 | 5.6056 | 5.2519 |
| 180 | 5.8348 | 5.4658 | 5.1197 |
| 181 | 5.6913 | 5.3300 | 4.9912 |
| 182 | 5.5518 | 5.1981 | 4.8665 |
| 183 | 5.4162 | 5.0699 | 4.7453 |
| 184 | 5.2845 | 4.9454 | 4.6276 |
| 185 | 5.1564 | 4.8243 | 4.5132 |
| 186 | 5.0319 | 4.7066 | 4.4020 |
| 187 | 4.9108 | 4.5923 | 4.2940 |
| 188 | 4.7930 | 4.4811 | 4.1890 |
| 189 | 4.6786 | 4.3729 | 4.0869 |
| 190 | 4.5672 | 4.2678 | 3.9877 |
| 191 | 4.4589 | 4.1656 | 3.8912 |
| 192 | 4.3535 | 4.0662 | 3.7974 |
| 193 | 4.2510 | 3.9695 | 3.7062 |
| 194 | 4.1513 | 3.8754 | 3.6175 |
| 195 | 4.0542 | 3.7839 | 3.5313 |
| 196 | 3.9598 | 3.6949 | 3.4474 |
| 197 | 3.8679 | 3.6083 | 3.3658 |
| 198 | 3.7784 | 3.5240 | 3.2864 |
| 199 | 3.6913 | 3.4420 | 3.2091 |
| 200 | 3.6066 | 3.3621 | 3.1340 |
| 201 | 3.5240 | 3.2844 | 3.0608 |
| 202 | 3.4437 | 3.2088 | 2.9896 |
| 203 | 3.3654 | 3.1352 | 2.9203 |
| 204 | 3.2892 | 3.0635 | 2.8529 |
| 205 | 3.2150 | 2.9937 | 2.7872 |
| 206 | 3.1428 | 2.9257 | 2.7233 |
| 207 | 3.0723 | 2.8595 | 2.6611 |
| 208 | 3.0038 | 2.7950 | 2.6005 |
| 209 | 2.9369 | 2.7322 | 2.5415 |
| 210 | 2.8718 | 2.6710 | 2.4840 |
| 211 | 2.8084 | 2.6114 | 2.4281 |
| 212 | 2.7466 | 2.5534 | 2.3735 |
| 213 | 2.6863 | 2.4968 | 2.3204 |
| 214 | 2.6276 | 2.4417 | 2.2687 |
| 215 | 2.5703 | 2.3879 | 2.2183 |
| 216 | 2.5145 | 2.3356 | 2.1691 |
| 217 | 2.4601 | 2.2845 | 2.1213 |
| 218 | 2.4071 | 2.2348 | 2.0746 |
| 219 | 2.3553 | 2.1863 | 2.0292 |
| 220 | 2.3049 | 2.1390 | 1.9848 |
| 221 | 2.2557 | 2.0929 | 1.9416 |
| 222 | 2.2078 | 2.0479 | 1.8995 |
| 223 | 2.1610 | 2.0041 | 1.8585 |
| 224 | 2.1153 | 1.9614 | 1.8184 |
| 225 | 2.0708 | 1.9197 | 1.7794 |
| 226 | 2.0274 | 1.8790 | 1.7413 |
| 227 | 1.9850 | 1.8393 | 1.7042 |
| 228 | 1.9436 | 1.8006 | 1.6680 |
| 229 | 1.9032 | 1.7628 | 1.6326 |
| 230 | 1.8639 | 1.7260 | 1.5982 |
| 231 | 1.8254 | 1.6900 | 1.5645 |
| 232 | 1.7879 | 1.6550 | 1.5317 |
| 233 | 1.7513 | 1.6207 | 1.4997 |
| 234 | 1.7155 | 1.5873 | 1.4685 |
| 235 | 1.6806 | 1.5547 | 1.4380 |
| 236 | 1.6465 | 1.5228 | 1.4083 |
| 237 | 1.6133 | 1.4917 | 1.3792 |
| 238 | 1.5808 | 1.4614 | 1.3509 |
| 239 | 1.5490 | 1.4318 | 1.3232 |
| 240 | 1.5180 | 1.4028 | 1.2962 |
| 241 | 1.4878 | 1.3746 | 1.2699 |
| 242 | 1.4582 | 1.3470 | 1.2441 |
| 243 | 1.4293 | 1.3200 | 1.2190 |
| 244 | 1.4011 | 1.2937 | 1.1944 |
| 245 | 1.3735 | 1.2680 | 1.1705 |
| 246 | 1.3466 | 1.2429 | 1.1471 |
| 247 | 1.3203 | 1.2183 | 1.1242 |
| 248 | 1.2945 | 1.1944 | 1.1018 |
| 249 | 1.2694 | 1.1709 | 1.0800 |
| 250 | 1.2448 | 1.1481 | 1.0587 |
| 251 | 1.2208 | 1.1257 | 1.0379 |
| 252 | 1.1973 | 1.1038 | 1.0175 |
| 253 | 1.1744 | 1.0825 | 0.9976 |
| 254 | 1.1520 | 1.0616 | 0.9782 |
| 255 | 1.1300 | 1.0412 | 0.9592 |
| 256 | 1.1086 | 1.0212 | 0.9406 |
| 257 | 1.0876 | 1.0017 | 0.9225 |
| 258 | 1.0671 | 0.9826 | 0.9047 |
| 259 | 1.0471 | 0.9640 | 0.8874 |
| 260 | 1.0275 | 0.9457 | 0.8704 |
| 261 | 1.0083 | 0.9279 | 0.8539 |
| 262 | 0.9895 | 0.9105 | 0.8377 |
| 263 | 0.9712 | 0.8934 | 0.8218 |
| 264 | 0.9532 | 0.8767 | 0.8063 |
| 265 | 0.9356 | 0.8604 | 0.7912 |
| 266 | 0.9185 | 0.8445 | 0.7763 |
| 267 | 0.9016 | 0.8288 | 0.7618 |
| 268 | 0.8852 | 0.8136 | 0.7477 |
| 269 | 0.8691 | 0.7986 | 0.7338 |
| 270 | 0.8533 | 0.7840 | 0.7202 |
| 271 | 0.8379 | 0.7697 | 0.7070 |
| 272 | 0.8228 | 0.7557 | 0.6940 |
| 273 | 0.8080 | 0.7420 | 0.6813 |
| 274 | 0.7936 | 0.7286 | 0.6688 |
| 275 | 0.7794 | 0.7154 | 0.6566 |
| 276 | 0.7656 | 0.7026 | 0.6447 |
| 277 | 0.7520 | 0.6900 | 0.6331 |
| 278 | 0.7387 | 0.6777 | 0.6217 |
| 279 | 0.7257 | 0.6656 | 0.6105 |
| 280 | 0.7130 | 0.6538 | 0.5996 |
| 281 | 0.7005 | 0.6423 | 0.5889 |
| 282 | 0.6883 | 0.6310 | 0.5784 |
| 283 | 0.6763 | 0.6199 | 0.5681 |
| 284 | 0.6646 | 0.6090 | 0.5581 |
| 285 | 0.6531 | 0.5984 | 0.5482 |
| 286 | 0.6418 | 0.5880 | 0.5386 |
| 287 | 0.6308 | 0.5778 | 0.5292 |
| 288 | 0.6200 | 0.5678 | 0.5199 |
| 289 | 0.6094 | 0.5580 | 0.5109 |
| 290 | 0.5991 | 0.5484 | 0.5020 |
| 291 | 0.5889 | 0.5391 | 0.4934 |
| 292 | 0.5790 | 0.5299 | 0.4849 |
| 293 | 0.5692 | 0.5208 | 0.4765 |
| 294 | 0.5597 | 0.5120 | 0.4684 |
| 295 | 0.5503 | 0.5033 | 0.4604 |
| 296 | 0.5411 | 0.4949 | 0.4525 |
| 297 | 0.5321 | 0.4866 | 0.4448 |
| 298 | 0.5233 | 0.4784 | 0.4373 |
| 299 | 0.5146 | 0.4704 | 0.4300 |
| 300 | 0.5062 | 0.4626 | 0.4200 |
| 301 | 0.4978 | 0.4549 | 0.4100 |
| 302 | 0.4897 | 0.4474 | 0.4087 |
| 303 | 0.4817 | 0.4000 | 0.4019 |
| 304 | 0.4739 | 0.4328 | 0.3952 |
| 305 | 0.4662 | 0.4257 | 0.3899 |
| 306 | 0.4586 | 0.4187 | 0.3823 |
| 307 | 0.4513 | 0. | 0.3760 |
| 308 | 0.4440 | 0.4052 | 0.3698 |
| 309 | 0.4369 | 0.3891 | 0.3600 |
| 310 | 0.4299 | 0.3892 | 0.3579 |
| 311 | 0.4231 | 0.3860 | 0.3521 |
| 312 | 0.4164 | 0.3920 | 0.3464 |
| 313 | 0.4098 | 0.3737 | 0.3408 |
| 314 | 0.4033 | 0.3991 | 0.3353 |
| 315 | 0.3977 | 0.3618 | 0.3299 |
| 316 | 0.3890 | 0.3562 | 0.3246 |
| 317 | 0.3887 | 0.3506 | 0.3195 |
| 318 | 0.3810 | 0.3450 | 0.3144 |
| 319 | 0.3800 | 0.3396 | 0.3094 |
| 320 | 0.3712 | 0.3343 | 0.3045 |
| 321 | 0.3592 | 0.3291 | 0.2997 |
| 322 | 0.3575 | 0.3240 | 0.2950 |
| 323 | 0.3574 | 0.3190 | 0.2904 |
| 324 | 0.3450 | 0.3141 | 0.2859 |
| 325 | 0.3442 | 0.3092 | 0.2854 |
| 326 | 0.3320 | 0.3000 | 0.2892 |
| 327 | 0.3271 | 0.2941 | 0.2728 |
| 328 | 0.3263 | 0.2953 | 0.2686 |
| 329 | 0.3260 | 0.2908 | 0.2645 |
| 330 | 0.3156 | 0.2864 | 0.2604 |
| 331 | 0.3101 | 0.2820 | 0.2565 |
| 332 | 0.3055 | 0.2778 | 0.2526 |
| 333 | 0.3010 | 0.2736 | 0.2487 |
| 334 | 0.2965 | 0.2695 | 0.2450 |
| 335 | 0.2921 | 0.2655 | 0.2413 |
| 336 | 0.2878 | 0.2615 | 0.2377 |
| 337 | 0.2836 | 0.2577 | 0.2341 |
| 338 | 0.2794 | 0.2539 | 0.2306 |
| 339 | 0.2754 | 0.2501 | 0.2272 |
| 340 | 0.2714 | 0.2464 | 0.2238 |
| 341 | 0.2674 | 0.2428 | 0.2205 |
| 342 | 0.2636 | 0.2393 | 0.2172 |
| 343 | 0.2598 | 0.2358 | 0.2140 |
| 344 | 0.2560 | 0.2324 | 0.2109 |
| 345 | 0.2524 | 0.2290 | 0.2078 |
| 346 | 0.2488 | 0.2257 | 0.2048 |
| 347 | 0.2452 | 0.2225 | 0.2018 |
| 348 | 0.2417 | 0.2193 | 0.1989 |
| 349 | 0.2383 | 0.2161 | 0.1960 |
| 350 | 0.2350 | 0.2131 | 0.1932 |
上一篇：锂电池NTC热敏电阻 下一篇：10KΩ NTC热敏电阻
