NTC电阻值(标准值)=10K B常数=3950 技术表
来源：本站 更新时间：2018-05-08 22:26:21 查看次数：

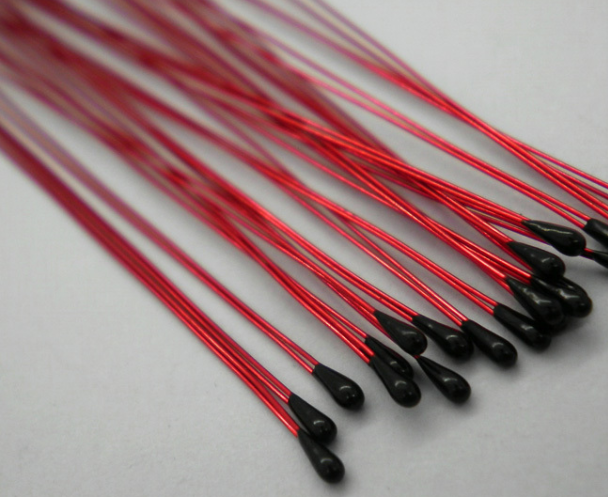

负温度系数NTC热敏电阻(25℃)电阻值(标准值)=10K±5% B常数(25/85℃)=3950，B值精度默认为1%，MF52E103J3950ntc温度传感器-50℃~120℃温度范围内阻值与温度对应R/T特性表.
TEMPERATURE VS RESISTANCE TABLE
Resistance 10k Ohms at 25deg. C
Resistance Tolerance + / -5%
B Value 3950K at 25/50 deg. C
B Value Tolerance + / - 1%
|
Temp. (deg. C) |
Rmax (k Ohms) |
Rnor (k Ohms) |
Rmin (k Ohms) |
| -50 | 759.2354 | 693.0736 | 631.0956 |
| -49 | 705.5351 | 644.5208 | 587.3110 |
| -48 | 656.0093 | 599.7100 | 546.8718 |
| -47 | 610.3057 | 558.3278 | 509.4997 |
| -46 | 568.1038 | 520.0890 | 474.9419 |
| -45 | 529.1123 | 484.7341 | 442.9678 |
| -44 | 493.0660 | 452.0267 | 413.3672 |
| -43 | 459.7229 | 421.7511 | 385.9485 |
| -42 | 428.8627 | 393.7107 | 360.5363 |
| -41 | 400.2844 | 367.7258 | 336.9709 |
| -40 | 373.8046 | 343.6326 | 315.1062 |
| -39 | 349.2553 | 321.2809 | 294.8083 |
| -38 | 326.4839 | 300.5339 | 275.9549 |
| -37 | 305.3499 | 281.2660 | 258.4340 |
| -36 | 285.7252 | 263.3624 | 242.1429 |
| -35 | 267.4925 | 246.7177 | 226.9875 |
| -34 | 250.5442 | 231.2355 | 212.8813 |
| -33 | 234.7818 | 216.8273 | 199.7452 |
| -32 | 220.1147 | 203.4118 | 187.5063 |
| -31 | 206.4602 | 190.9144 | 176.0978 |
| -30 | 193.7419 | 179.2666 | 165.4581 |
| -29 | 181.8899 | 168.4053 | 155.5306 |
| -28 | 170.8399 | 158.2726 | 146.2633 |
| -27 | 160.5325 | 148.8151 | 137.6082 |
| -26 | 150.9134 | 139.9837 | 129.5211 |
| -25 | 141.9323 | 131.7332 | 121.9612 |
| -24 | 133.5432 | 124.0216 | 114.8910 |
| -23 | 125.7033 | 116.8107 | 108.2758 |
| -22 | 118.3735 | 110.0648 | 102.0835 |
| -21 | 111.5174 | 103.7512 | 96.2846 |
| -20 | 105.1016 | 97.8396 | 90.8517 |
| -19 | 99.0952 | 92.3020 | 85.7596 |
| -18 | 93.4696 | 87.1124 | 80.9847 |
| -17 | 88.1984 | 82.2471 | 76.5055 |
| -16 | 83.2573 | 77.6837 | 72.3020 |
| -15 | 78.6236 | 73.4018 | 68.3554 |
| -14 | 74.2763 | 69.3823 | 64.6487 |
| -13 | 70.1962 | 65.6077 | 61.1658 |
| -12 | 66.3652 | 62.0616 | 57.8919 |
| -11 | 62.7666 | 58.7288 | 54.8133 |
| -10 | 59.3851 | 55.5953 | 51.9172 |
| -9 | 56.2063 | 52.6480 | 49.1916 |
| -8 | 53.2168 | 49.8747 | 46.6257 |
| -7 | 50.4043 | 47.2643 | 44.2091 |
| -6 | 47.7574 | 44.8062 | 41.9323 |
| -5 | 45.2653 | 42.4906 | 39.7863 |
| -4 | 42.9181 | 40.3086 | 37.7631 |
| -3 | 40.7066 | 38.2516 | 35.8547 |
| -2 | 38.6221 | 36.3117 | 34.0541 |
| -1 | 36.6567 | 34.4817 | 32.3546 |
| 0 | 34.8029 | 32.7547 | 30.7499 |
| 1 | 33.0537 | 31.1243 | 29.2343 |
| 2 | 31.4027 | 29.5847 | 27.8022 |
| 3 | 29.8437 | 28.1301 | 26.4487 |
| 4 | 28.3712 | 26.7556 | 25.1689 |
| 5 | 26.9799 | 25.4562 | 23.9585 |
| 6 | 25.6649 | 24.2274 | 22.8133 |
| 7 | 24.4215 | 23.0650 | 21.7294 |
| 8 | 23.2455 | 21.9650 | 20.7032 |
| 9 | 22.1329 | 20.9239 | 19.7314 |
| 10 | 21.0798 | 19.9380 | 18.8108 |
| 11 | 20.0829 | 19.0041 | 17.9384 |
| 12 | 19.1387 | 18.1193 | 17.1114 |
| 13 | 18.2443 | 17.2807 | 16.3271 |
| 14 | 17.3967 | 16.4857 | 15.5833 |
| 15 | 16.5933 | 15.7317 | 14.8775 |
| 16 | 15.8315 | 15.0164 | 14.2077 |
| 17 | 15.1089 | 14.3376 | 13.5718 |
| 18 | 14.4233 | 13.6933 | 12.9678 |
| 19 | 13.7726 | 13.0816 | 12.3942 |
| 20 | 13.1549 | 12.5005 | 11.8490 |
| 21 | 12.5683 | 11.9485 | 11.3309 |
| 22 | 12.0111 | 11.4239 | 10.8383 |
| 23 | 11.4816 | 10.9252 | 10.3698 |
| 24 | 10.9784 | 10.4510 | 9.9241 |
| 25 | 10.5000 | 10.0000 | 9.5000 |
| 26 | 10.0539 | 9.5709 | 9.0884 |
| 27 | 9.6291 | 9.1626 | 8.6968 |
| 28 | 9.2246 | 8.7738 | 8.3243 |
| 29 | 8.8393 | 8.4037 | 7.9697 |
| 30 | 8.4721 | 8.0512 | 7.6321 |
| 31 | 8.1222 | 7.7154 | 7.3106 |
| 32 | 7.7886 | 7.3953 | 7.0044 |
| 33 | 7.4705 | 7.0903 | 6.7127 |
| 34 | 7.1670 | 6.7995 | 6.4346 |
| 35 | 6.8776 | 6.5221 | 6.1696 |
| 36 | 6.6013 | 6.2576 | 5.9169 |
| 37 | 6.3376 | 6.0051 | 5.6758 |
| 38 | 6.0858 | 5.7642 | 5.4459 |
| 39 | 5.8454 | 5.5342 | 5.2265 |
| 40 | 5.6157 | 5.3146 | 5.0171 |
| 41 | 5.3963 | 5.1049 | 4.8171 |
| 42 | 5.1865 | 4.9045 | 4.6262 |
| 43 | 4.9861 | 4.7130 | 4.4438 |
| 44 | 4.7944 | 4.5300 | 4.2696 |
| 45 | 4.6110 | 4.3551 | 4.1031 |
| 46 | 4.4357 | 4.1878 | 3.9440 |
| 47 | 4.2679 | 4.0278 | 3.7918 |
| 48 | 4.1073 | 3.8748 | 3.6463 |
| 49 | 3.9536 | 3.7283 | 3.5072 |
| 50 | 3.8064 | 3.5882 | 3.3740 |
| 51 | 3.6655 | 3.4540 | 3.2466 |
| 52 | 3.5305 | 3.3255 | 3.1247 |
| 53 | 3.4011 | 3.2025 | 3.0079 |
| 54 | 3.2772 | 3.0846 | 2.8961 |
| 55 | 3.1584 | 2.9717 | 2.7891 |
| 56 | 3.0445 | 2.8635 | 2.6865 |
| 57 | 2.9353 | 2.7597 | 2.5882 |
| 58 | 2.8305 | 2.6603 | 2.4940 |
| 59 | 2.7300 | 2.5649 | 2.4037 |
| 60 | 2.6336 | 2.4734 | 2.3171 |
| 61 | 2.5411 | 2.3856 | 2.2341 |
| 62 | 2.4523 | 2.3014 | 2.1545 |
| 63 | 2.3670 | 2.2206 | 2.0781 |
| 64 | 2.2851 | 2.1431 | 2.0048 |
| 65 | 2.2065 | 2.0686 | 1.9344 |
| 66 | 2.1309 | 1.9970 | 1.8669 |
| 67 | 2.0584 | 1.9283 | 1.8020 |
| 68 | 1.9886 | 1.8623 | 1.7397 |
| 69 | 1.9216 | 1.7989 | 1.6799 |
| 70 | 1.8571 | 1.7380 | 1.6225 |
| 71 | 1.7951 | 1.6794 | 1.5672 |
| 72 | 1.7355 | 1.6231 | 1.5142 |
| 73 | 1.6782 | 1.5689 | 1.4631 |
| 74 | 1.6230 | 1.5168 | 1.4141 |
| 75 | 1.5699 | 1.4667 | 1.3669 |
| 76 | 1.5188 | 1.4185 | 1.3215 |
| 77 | 1.4697 | 1.3722 | 1.2779 |
| 78 | 1.4223 | 1.3275 | 1.2359 |
| 79 | 1.3767 | 1.2845 | 1.1955 |
| 80 | 1.3328 | 1.2431 | 1.1566 |
| 81 | 1.2905 | 1.2033 | 1.1192 |
| 82 | 1.2497 | 1.1649 | 1.0831 |
| 83 | 1.2105 | 1.1279 | 1.0484 |
| 84 | 1.1726 | 1.0923 | 1.0150 |
| 85 | 1.1361 | 1.0580 | 0.9828 |
| 86 | 1.1009 | 1.0249 | 0.9517 |
| 87 | 1.0670 | 0.9930 | 0.9218 |
| 88 | 1.0343 | 0.9623 | 0.8930 |
| 89 | 1.0028 | 0.9326 | 0.8652 |
| 90 | 0.9723 | 0.9040 | 0.8384 |
| 91 | 0.9429 | 0.8764 | 0.8126 |
| 92 | 0.9146 | 0.8498 | 0.7877 |
| 93 | 0.8872 | 0.8241 | 0.7636 |
| 94 | 0.8608 | 0.7994 | 0.7404 |
| 95 | 0.8353 | 0.7754 | 0.7181 |
| 96 | 0.8107 | 0.7523 | 0.6965 |
| 97 | 0.7869 | 0.7300 | 0.6756 |
| 98 | 0.7639 | 0.7085 | 0.6555 |
| 99 | 0.7417 | 0.6877 | 0.6361 |
| 100 | 0.7202 | 0.6676 | 0.6173 |
| 101 | 0.6995 | 0.6482 | 0.5992 |
| 102 | 0.6795 | 0.6295 | 0.5817 |
| 103 | 0.6601 | 0.6113 | 0.5648 |
| 104 | 0.6414 | 0.5938 | 0.5484 |
| 105 | 0.6232 | 0.5769 | 0.5326 |
| 106 | 0.6057 | 0.5605 | 0.5173 |
| 107 | 0.5888 | 0.5447 | 0.5026 |
| 108 | 0.5724 | 0.5293 | 0.4883 |
| 109 | 0.5565 | 0.5145 | 0.4745 |
| 110 | 0.5412 | 0.5002 | 0.4612 |
| 111 | 0.5263 | 0.4863 | 0.4483 |
| 112 | 0.5119 | 0.4729 | 0.4358 |
| 113 | 0.4980 | 0.4599 | 0.4237 |
| 114 | 0.4845 | 0.4474 | 0.4120 |
| 115 | 0.4715 | 0.4352 | 0.4007 |
| 116 | 0.4589 | 0.4234 | 0.3897 |
| 117 | 0.4466 | 0.4120 | 0.3791 |
| 118 | 0.4347 | 0.4009 | 0.3688 |
| 119 | 0.4233 | 0.3902 | 0.3589 |
| 120 | 0.4121 | 0.3799 | 0.3493 |
